Tehnična specifikacija
- Manual feeding station
- Milling station
- Roughening station

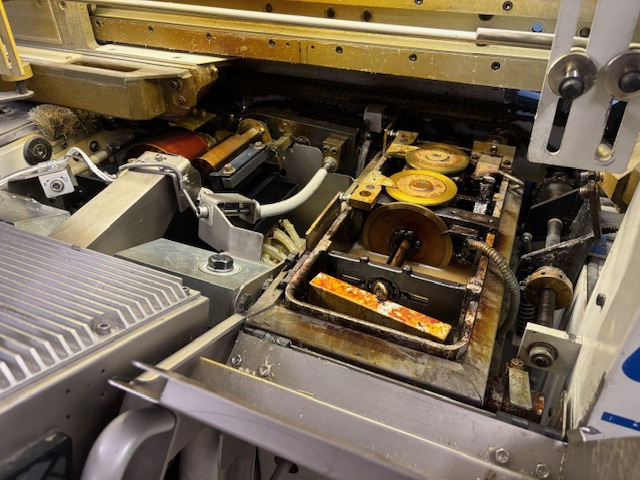

- PUR roller spine gluing unit with integrated drum melter (for 20 kg glue candles)

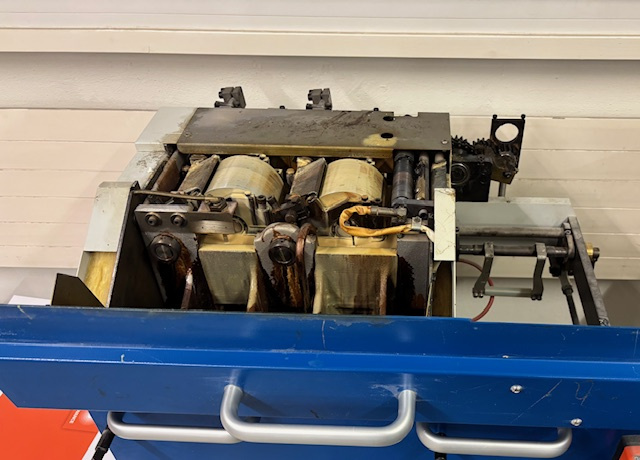

- Hotmelt roller spine gluing unit with integrated premelter
- Hotmelt side gluing unit (can be transferred from the PUR trolley to the Hotmelt trolley)
- Cover feeder with creasing unit
- Press station with the following press plates:
- 7 mm straight
- Rounded for double-creased covers
- Conical 0.5 mm (for products with fold rise, e.g. thread-sewn blocks)
- Conical 1.0 mm (for products with fold rise, e.g. thread-sewn blocks)
- Belt delivery (products standing on the spine)
- Motorized adjustment via touchscreen display
- Defective old screen (could be repaired by Wohlenberg)
- Note: the machine can also be operated via an external monitor and keyboard
- Machine documentation in German
- Various spare parts (heating cartridges, switches, valves, etc.)
Technical Data
- Maximum format: 320 × 430 × 70 mm
- Minimum format: 105 × 110 × 2 mm
- Maximum mechanical speed: 2,000 cycles/hour
- Practical output: approx. 1,000 pieces/hour with 5 mm book block thickness and 2 operators. Depending on book block thickness and format, effective production ranges from approx. 600 to 1,400 pieces/hour.
- Total machine counter: 2,660,482 copies (May 16, 2026)
- 4,486,580 cycles (May 16, 2026)
Natančna specifikacija po povpraševanju!
