SCS CORN MAS

HomeMachinesPostpress machinesBookbindery machinesSCS CORN MAS

New SCS CORN MAS
SCS CORN MAS
SCS CORN MAS
SCS CORN MAS
SCS CORN MAS
SCS CORN MAS

Properties

Reference number: IMP2153
Manufacturer: SCS
Model: CORN MAS
Year of production: 2012
Format / Working width: max. 720×420 mm
Available: immediately
Machine visible: in produktion
Price: on request

Technical specification

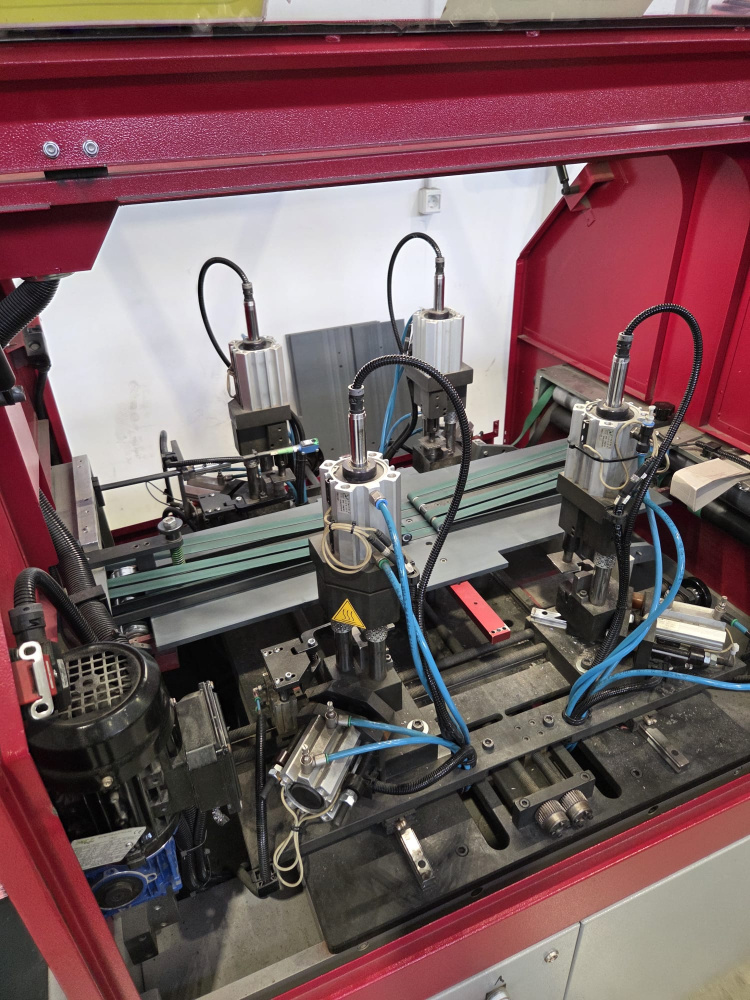

Application: rapid automated corner rounding for hard covers/boxes coming from a casemaker — automatic in-line feed; four diagonally moving tools shape the rounded corners

Manufacturer: SCS Automaberg, Brusaporto (BG), Italy

Machine type: Corner Master

  • Year of manufacture: 2012
  • Format: min. 143×94 mm — max. 720×420 mm (W×H)
  • Rounding tools: R8, R10, R12 mm
  • Conveyor belt speed: 60 m/min
  • Max. operating speed: 3,600 cycles/hour
  • Motor power: 2 kW
  • Power supply: 400 V / 3-phase / 50 Hz
  • Air consumption: approx. 900 l/min at 6 bar
  • Dimensions: L 2590 × W 1190 × H 1890 mm
  • Weight: 800 kg
  • Note: recommended board weight up to max. 1,000 g/m²; no material pre-processing required

Detailed specification on inquiry!
