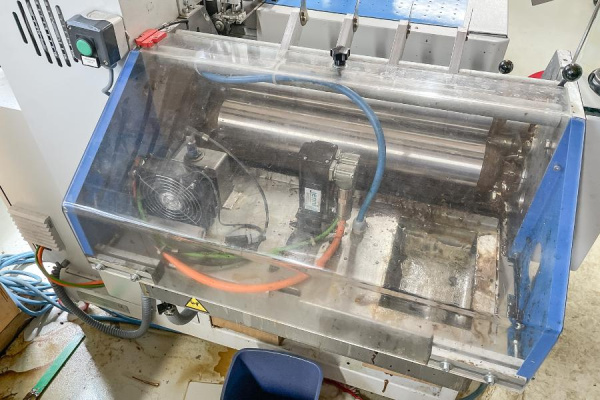

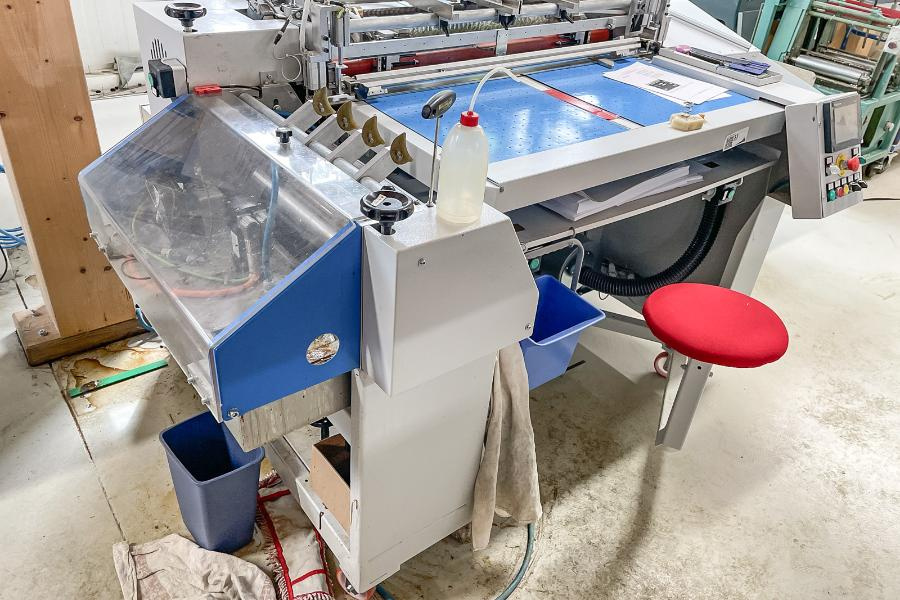

Samed Rebord Darix Evolution

Technical specification

Case maker machine with automatic board feeding system suitable to run book covers or mono piece works in different sizes for Short/Medium runs.

• minimum size (open Case) L: 190mm H: 160mm
• maximum size (open Case) 460 x 900mm
• minimum thickness of the board: 1,5 mm
• spine width Min: 6 mm ; Max: 100 mm
• overlap covering material Min: 15 mm ; Max: 30 mm
• maximum thickness of the board 6 mm – Possibility to work Different board thickness On the same cover
• cover material types: Textile, laminated paper, photopaper, imitation-leather, PVC polyurethane
• cover material thickness: From 80 up to 400 g/m2

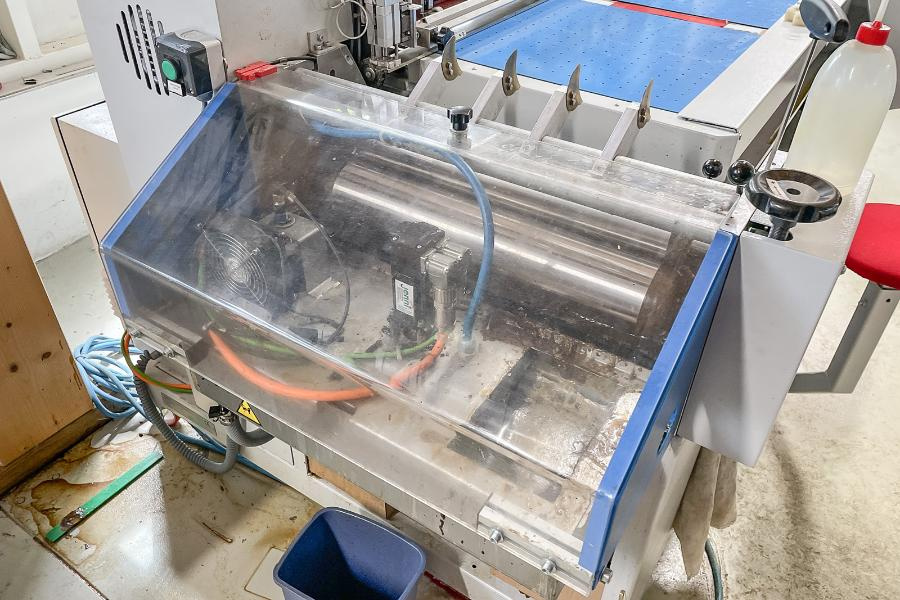

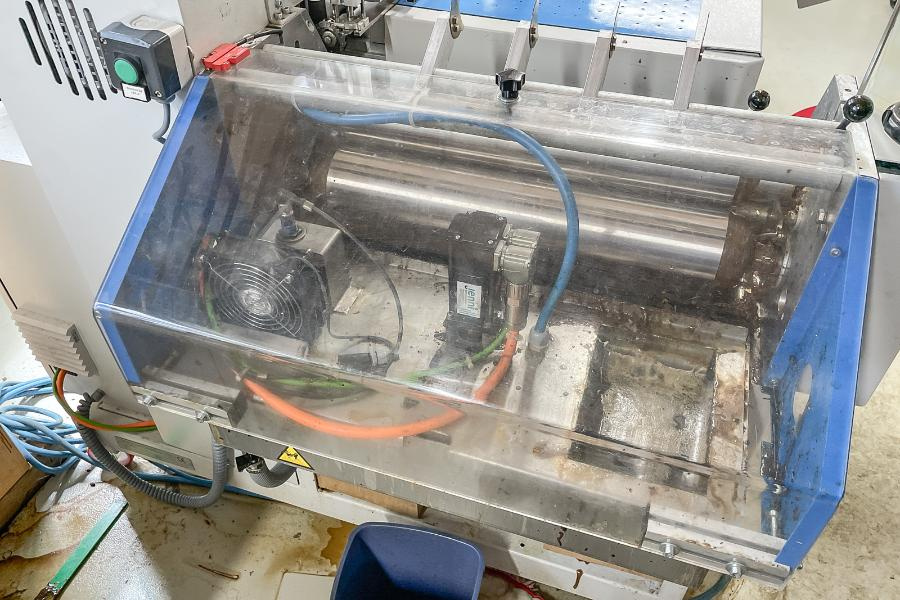

• glue tank capacity: 5 kg Hot animal Glue (Cold glue forlining works only)
• productivity: 4pcs/minute (as per size and operator skillfulness)

Detailed specification on inquiry!
