| Reference number: | 2030 |
| Manufacturer: | Samed Innovazioni Rebord |

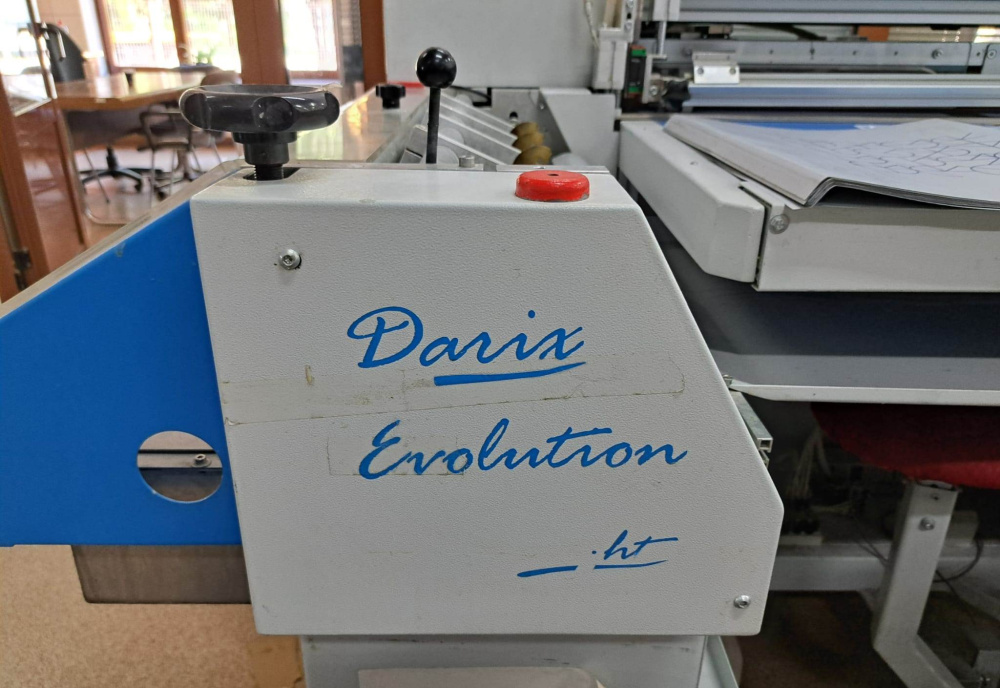

| Model: | Darix Evolution Light |
| Year of production: | 2019 |
| Price: | on request |

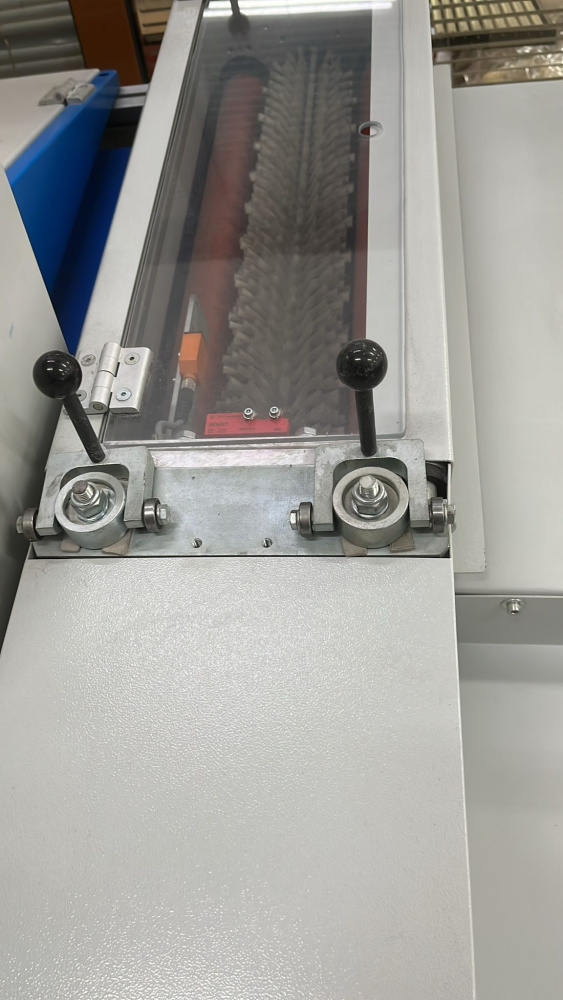

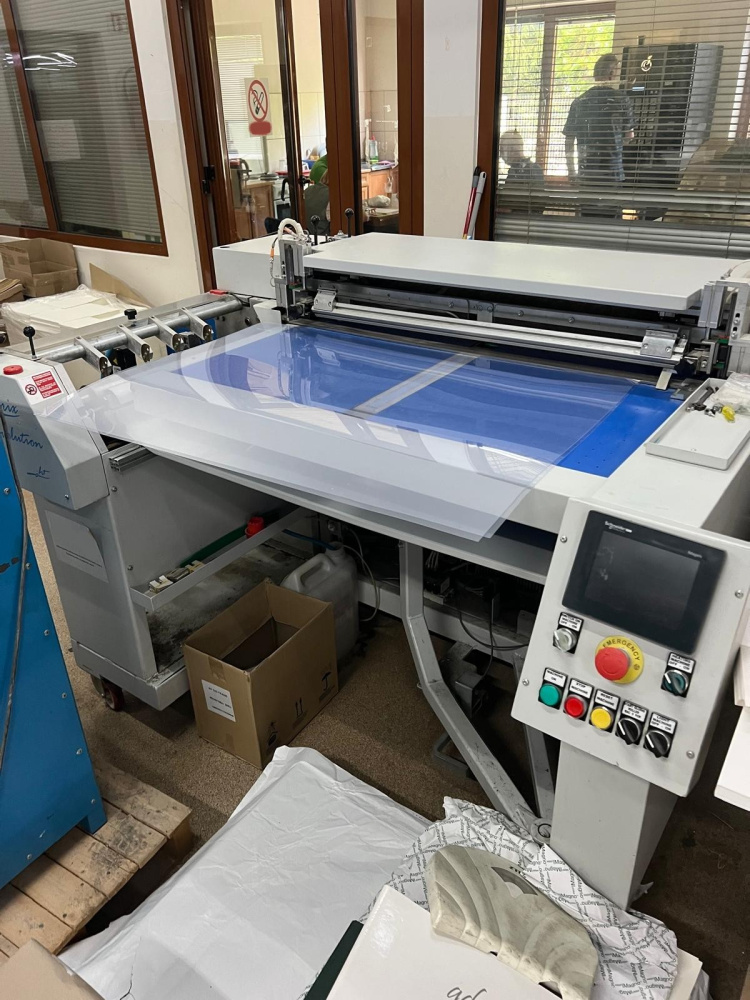

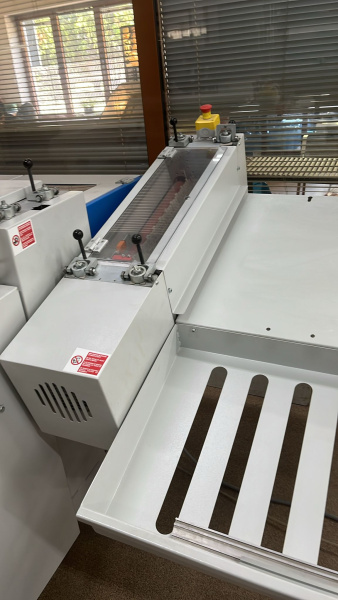

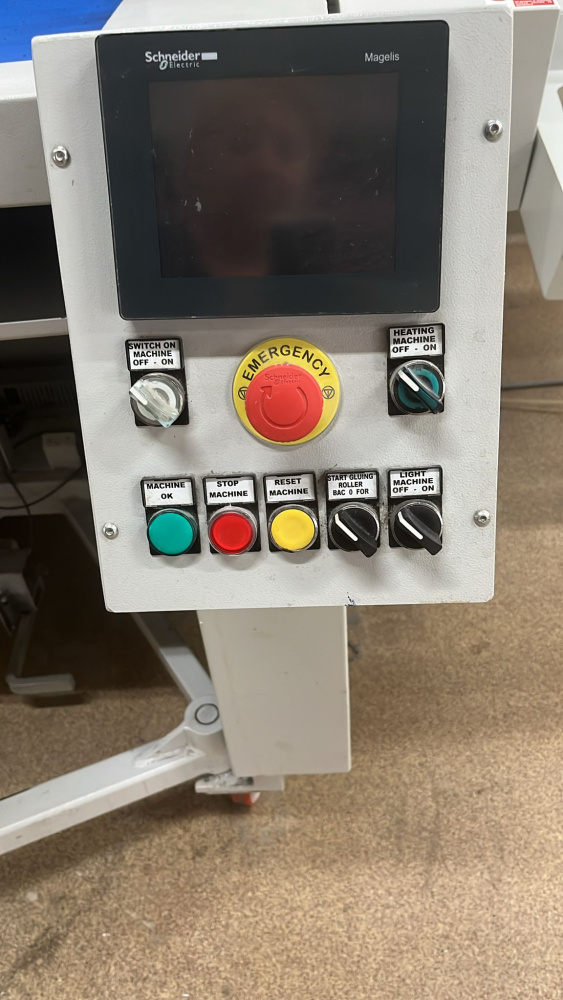

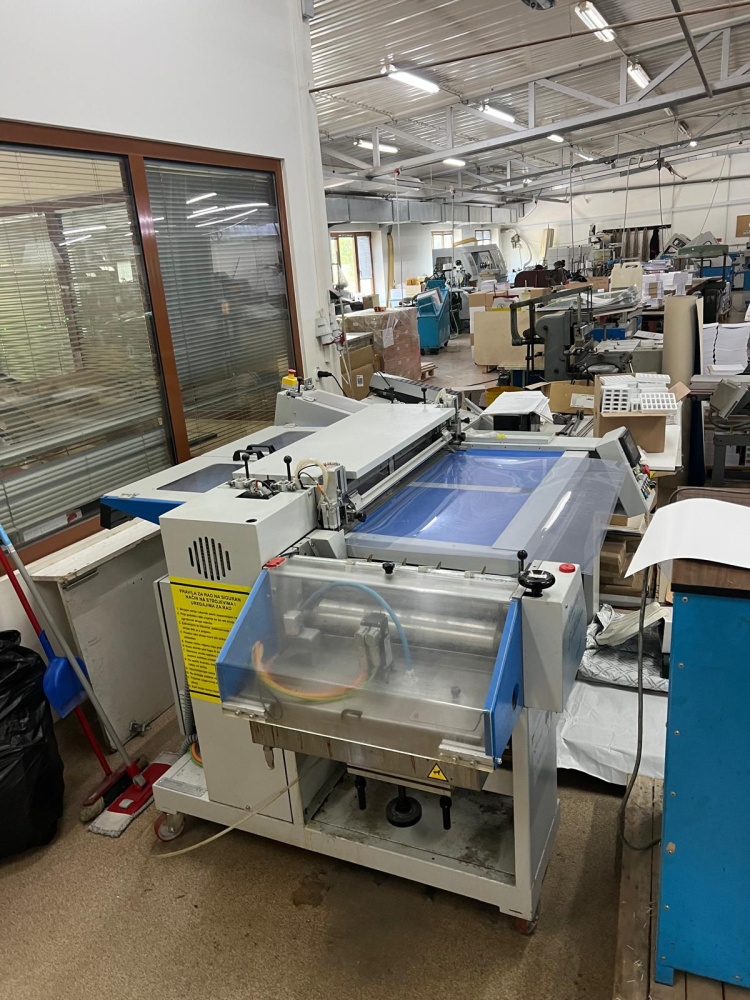

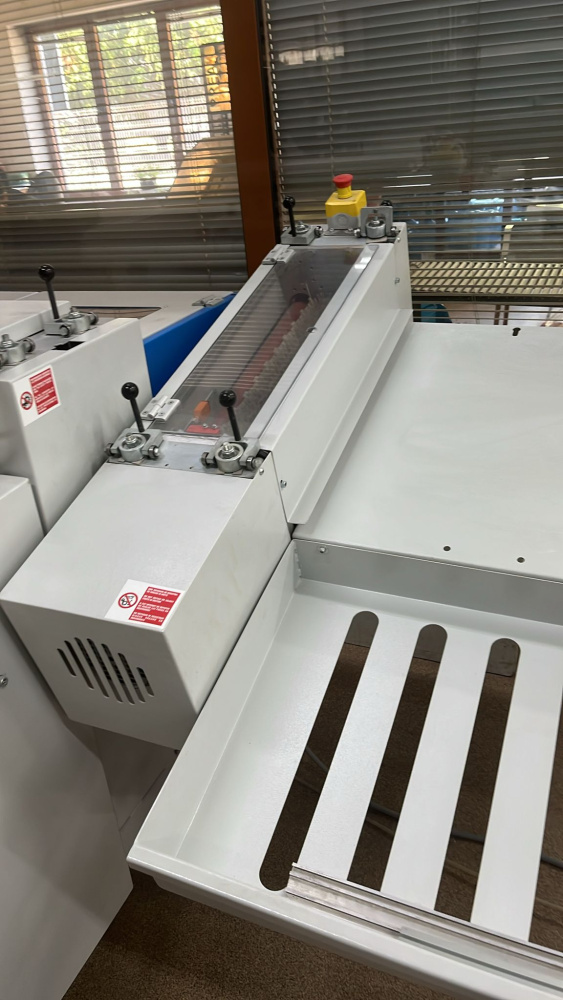

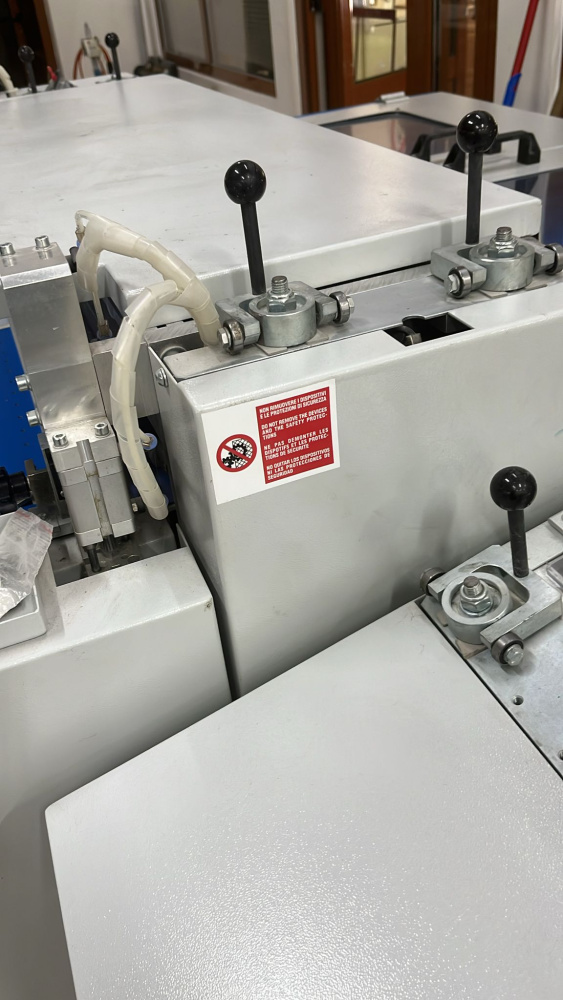

Semi automatic case maker machine
• Minimum size (open Case) L: 190mm H: 160mm
• Maximum size (open Case) 460 x 900mm
• Minimum thickness of the board: 1,5 mm
• Spine width Min: 6 mm ; Max: 100 mm
• Overlap covering material Min: 15 mm ; Max: 30 mm
• Maximum thickness of the board 6 mm – Possibility to work Different board thickness On the same cover
• Cover material types: Textile, laminated paper, photopaper, imitation-leather, PVC polyurethane
• Cover material thickness: From 80 up to 400 g/m2
• Glue tank capacity: 5 kg Hot animal Glue (Cold glue forlining works only)
• Productivity: 4pcs/minute assured
Detailed specification on inquiry!
