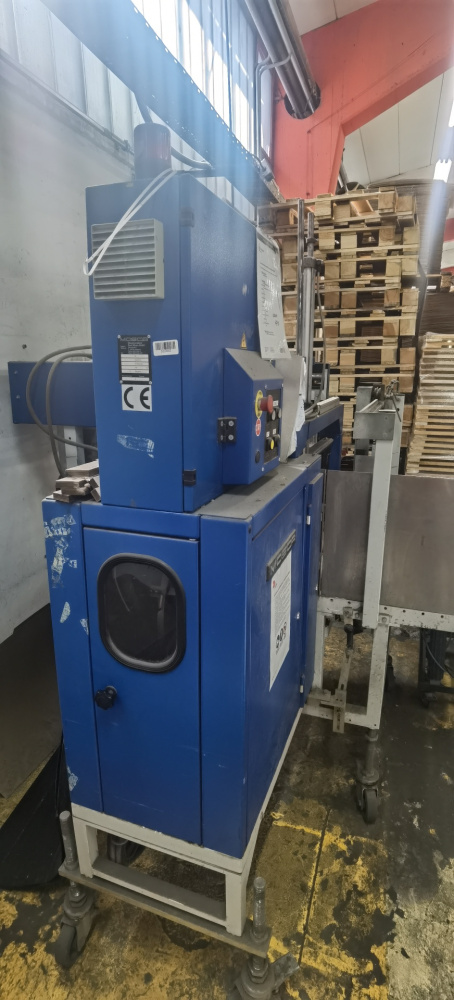

Mosca RO-TRS 4

Technical specification

Fully Automatic Side-Seal Strapper With Actuated Roller Conveyor For Strapping

• Strap end detection with ejection of the remaining strap
• Automatic strap loop ejection
• Dispenser with bayonet closure
• Direct current drive of the unit by wear-free direct drives
• Wear-free, controlled strap track system
• Adjustable roller actuation with frequency controlled motor
• Adjustable strap distances
• PLC control Siemens type S7
• Touch panel for optic operating instructions, troubles shooting guide, etc.
• Heat-weld sealing system with electronic temperature controls
• Permanent strapping counter
• Dry contact relay for up-stream and down-stream systems
• Adjustable conveyor table height from 800-900 mm
• Structural coating RAL 5010, gentian blue

Technical details:

• Capacity: approx.. 30 bundles/ minute at a conveying speed of 0.6 m/s
• Straps: PP-strap 5-12 mm
• Strap coil dispenser: Core diameter: 200 mm
• Core width: 190 mm

Detailed specification on inquiry!
