Technical specification

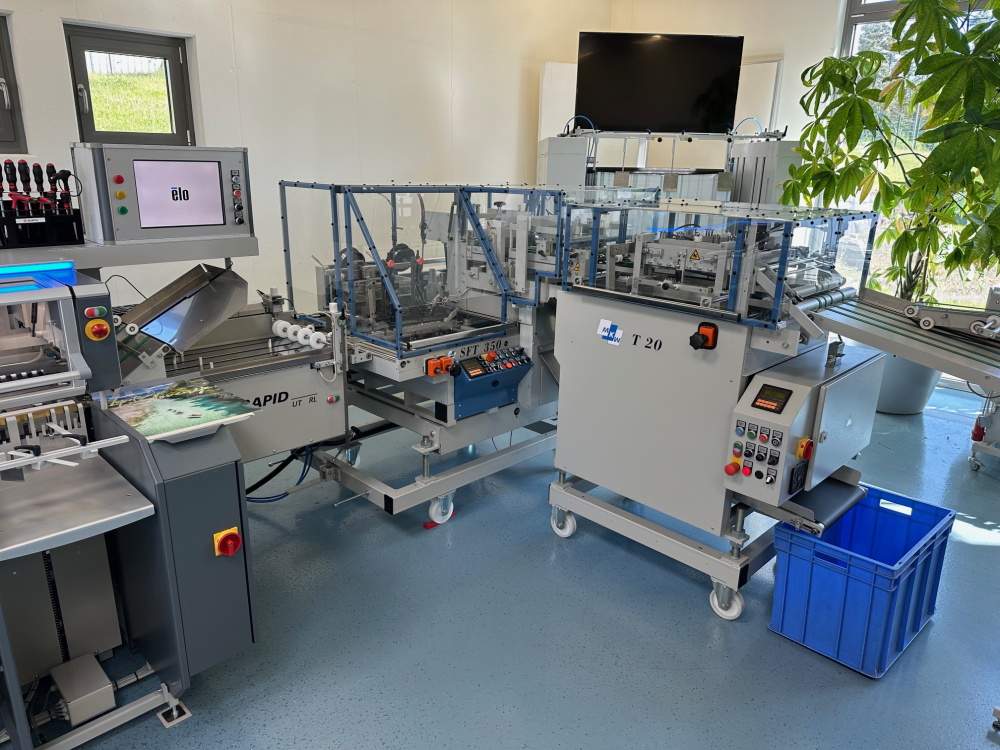

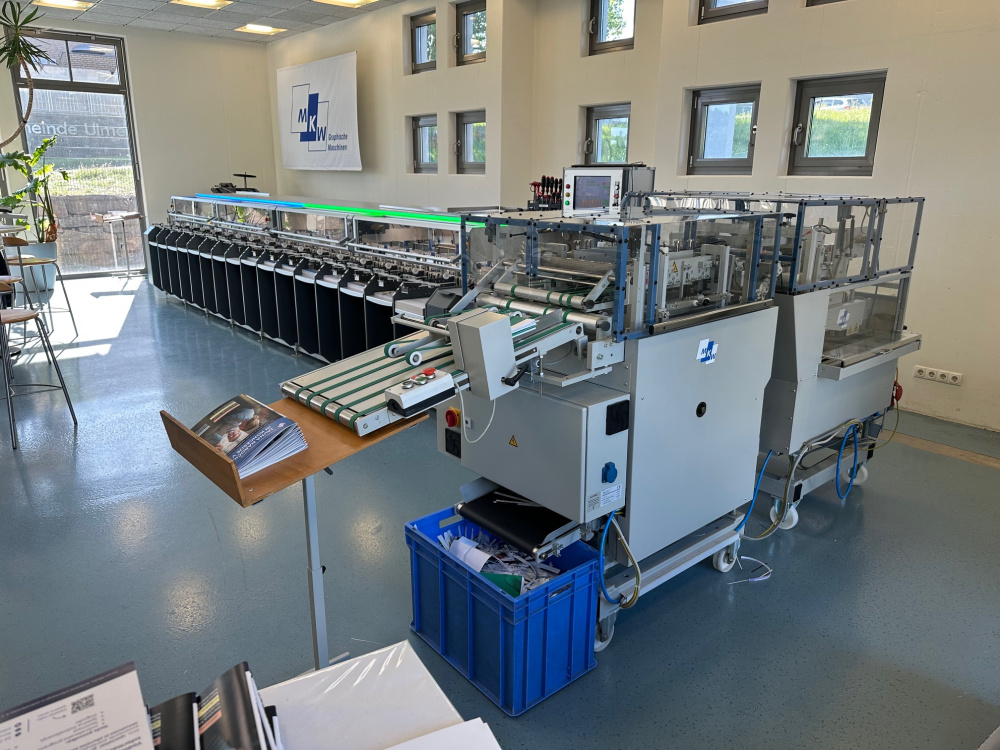

MKW RAPID UT / B3 / GS / RL + MKW RAPID SFT 350

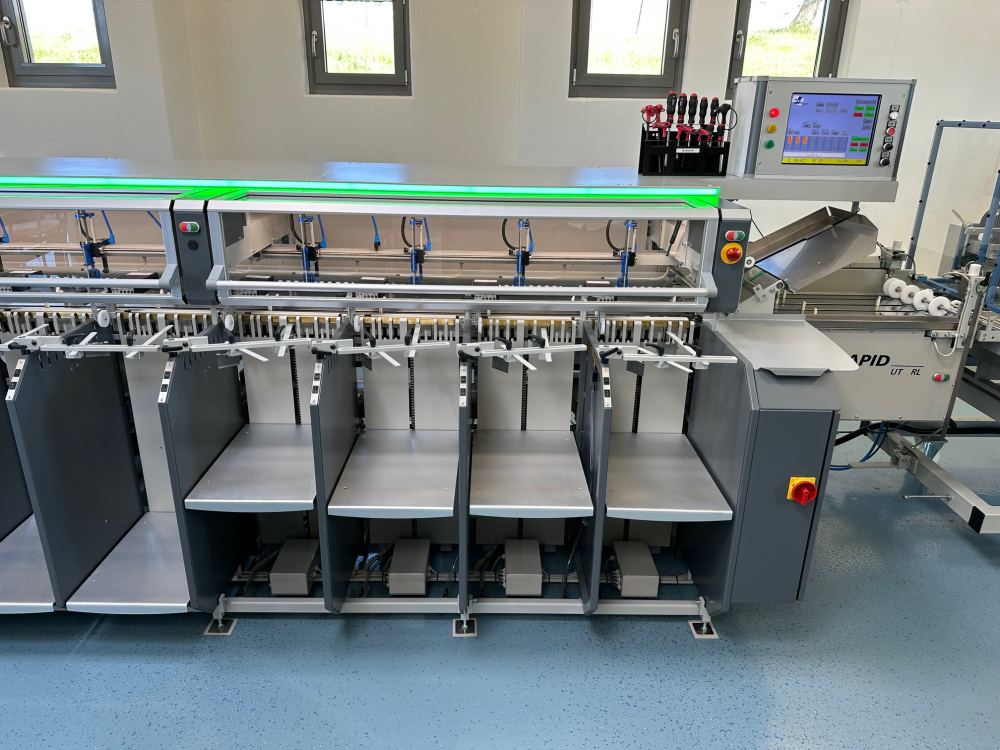

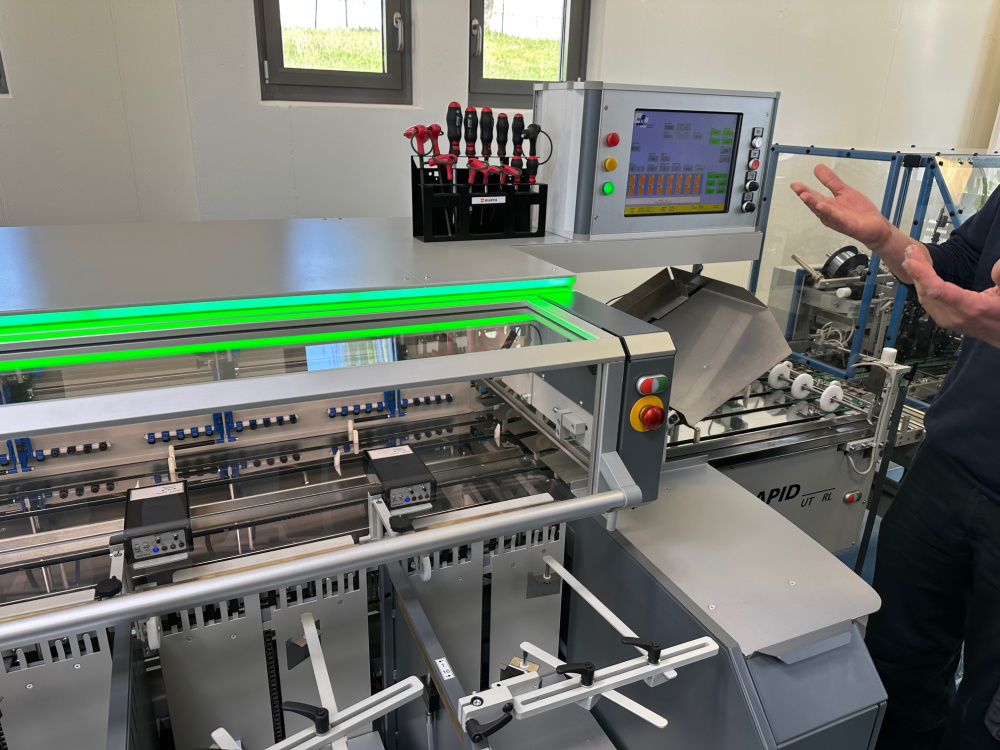

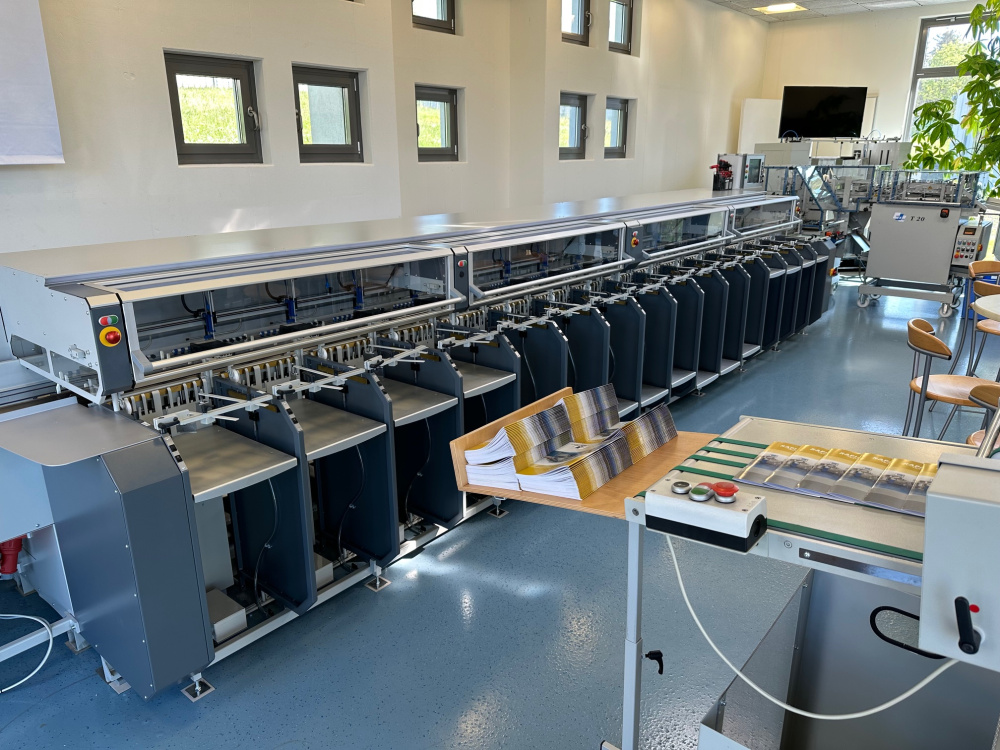

New automatic collator MKW RAPID UT16 / B3 / GS
- 16 stations
- Paper format: 10 x 14 cm to 35 x 50 cm
- High pile up to 70 cm
- Paper weight up to 1000 g/m²
- Materials: single sheets, folded sheets, carton, plastic foils...
- Missing and double sheet control
- Automatic missing sheet retry function
- Ejector unit
- Right (brochures) & Left (calender, blocks…) movement direction
- Additional collating functions (Tandem)
Stitching, folding and front trimming unit MKW RAPID SFT 350 (factory refurbished)
- Brochure open format: 10 x 14 cm to 35 x 50 cm
- Quick format setting
- 2 flat-staple stitching heads Hohner HK 43/6 FL (possible to connect up to 6 stitching heads)
- Folding unit
- Front trimming unit – min. lenght 6 cm
- Brochure delivery with electronic separator
Options:
Head and tail trimming unit MKW RAPID T 20 (factory refurbished)
- Min. brochure format: 10 x 6 cm
- Max. brochure format: 35 x 25 cm
High pile delivery MKW RAPID HA-350 L (on left side)
- Format 10 x 14 cm to 35 x 50 cm
- Loading capactiy up to 60 cm
- Stacking function adjustable: straight stacking or offset function
- 2 movable stagger pallets
THE MACHINE PICTURES ARE SAMPLE!
Detailed specification on inquiry!
