Technical specification

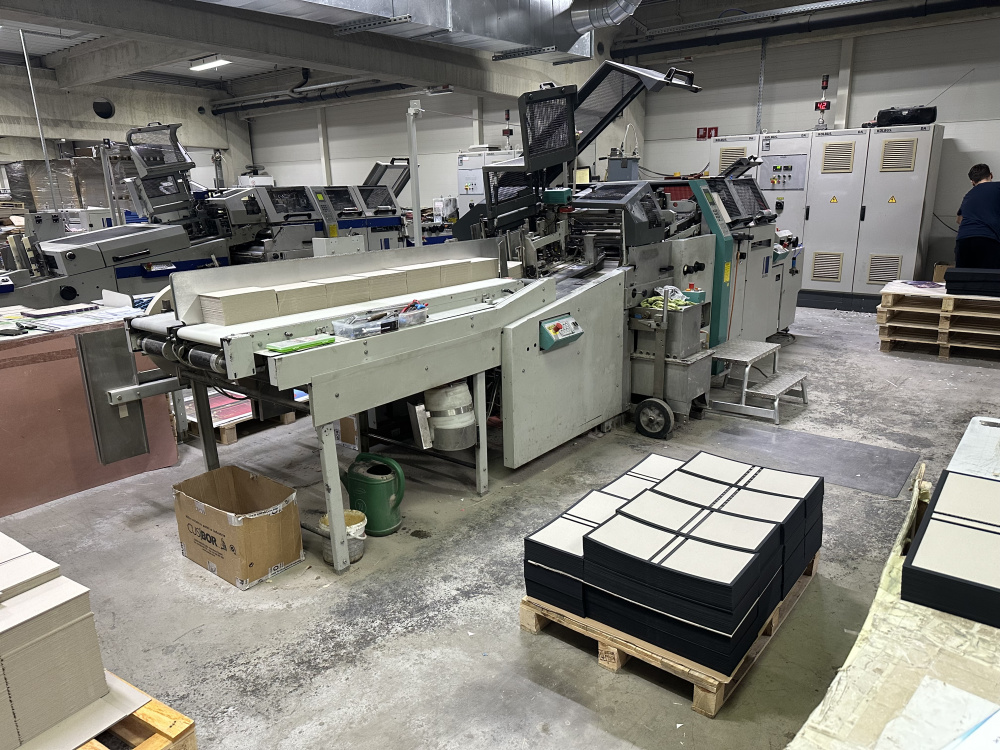

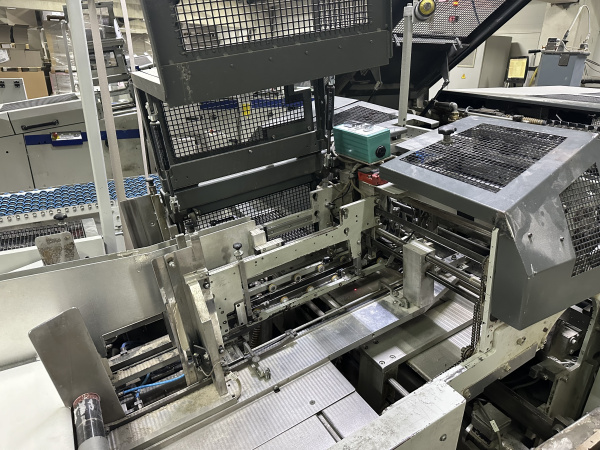

For fully automatic production of book cases, files, display cards, calendar backs or game boards.
- Motorised setting

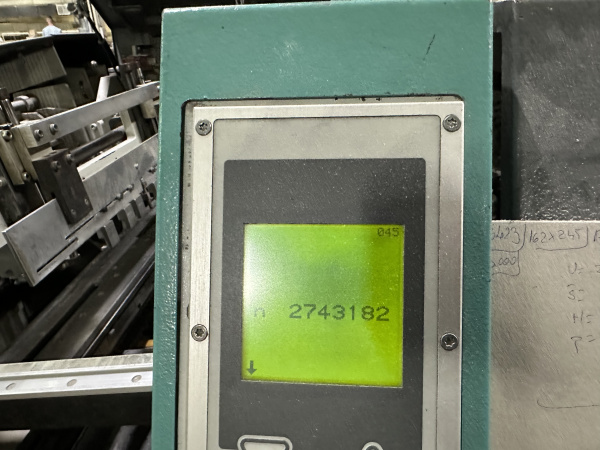

- Automatic case counter
- Board pre stacking conveyor
- Centre strip infeed (stiff)
- Centre strip infeed (flexible)
- Waste chopper
- Cloth feeder
- Glue unit
- Preheated glue tube
- Viscosity control
- Device for inside lining with hotmelt
- Device for producing padded cases
- Pressing station

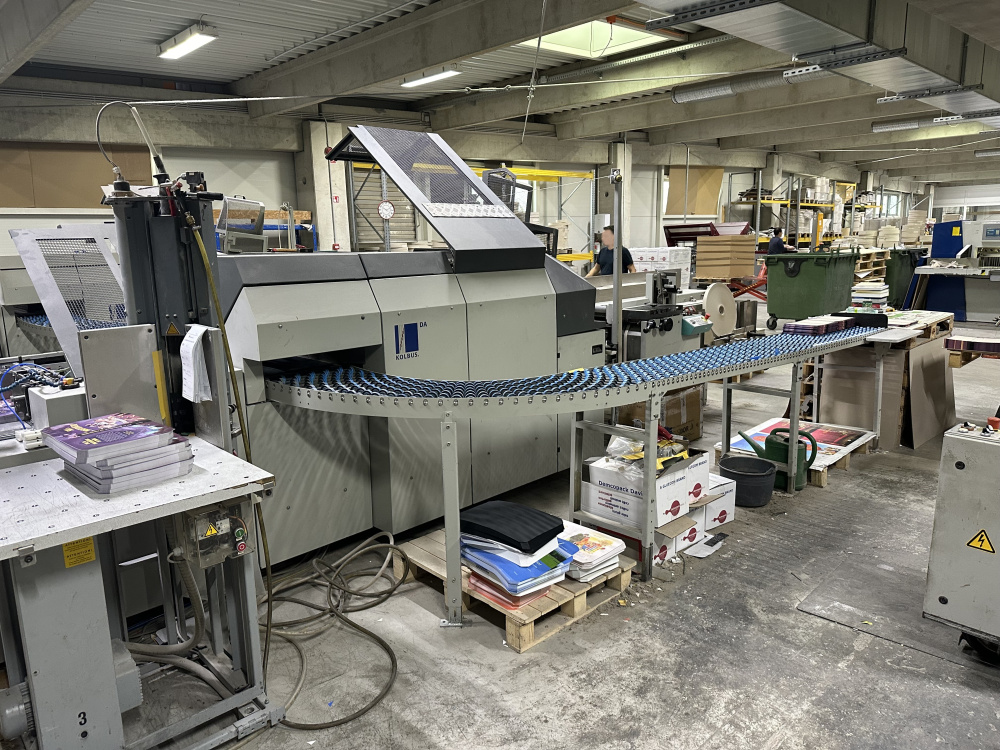

- Stacking delivery
Technical details:
- Size range opened case (min) 205 x 140 mm
- Size range opened case (max) 670 x 390 mm
- Join width: 4 - 15 mm
- Width between boards: 14 - 120 mm
- Turn width, closed 8 - 15 mm
- Cloth with: 223 - 708 mm
- Cloth height: 130 - 428 mm
- Boards thickness: 1 - 4mm
- Board Width: 95 - 328 mm
- Board Height: 140 - 390 mm
Detailed specification on inquiry!
