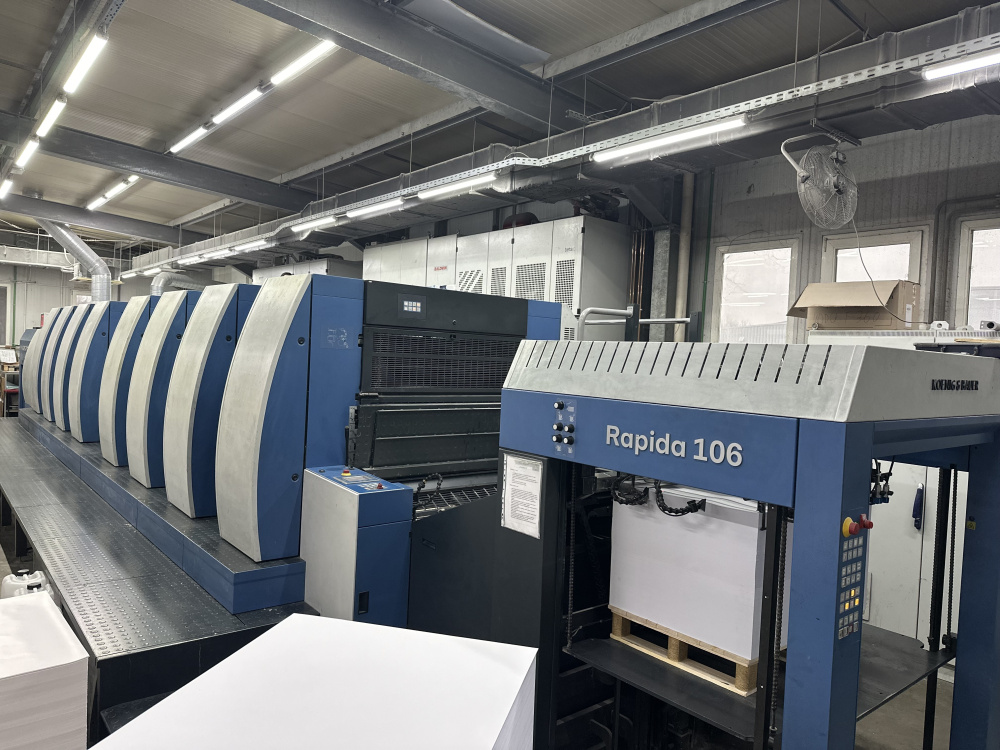

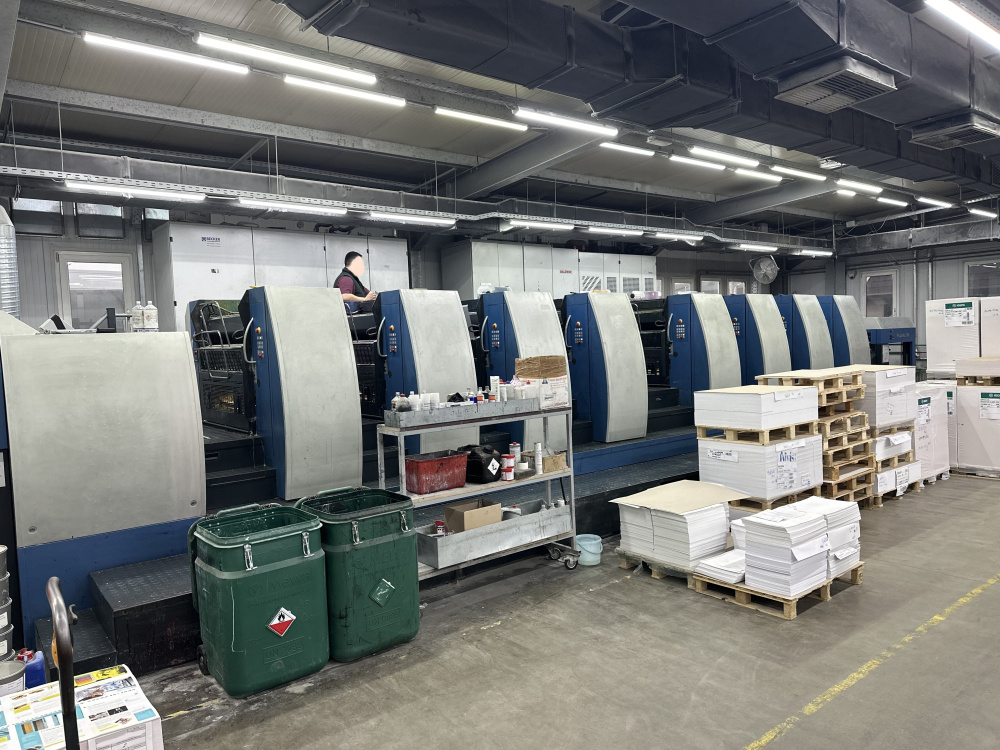

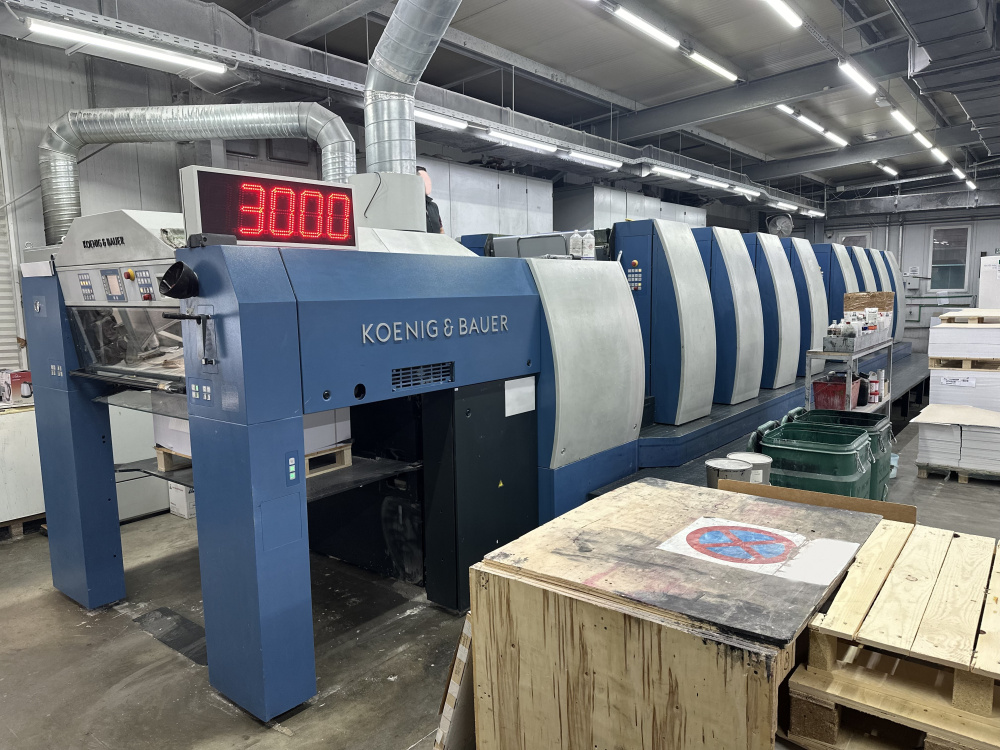

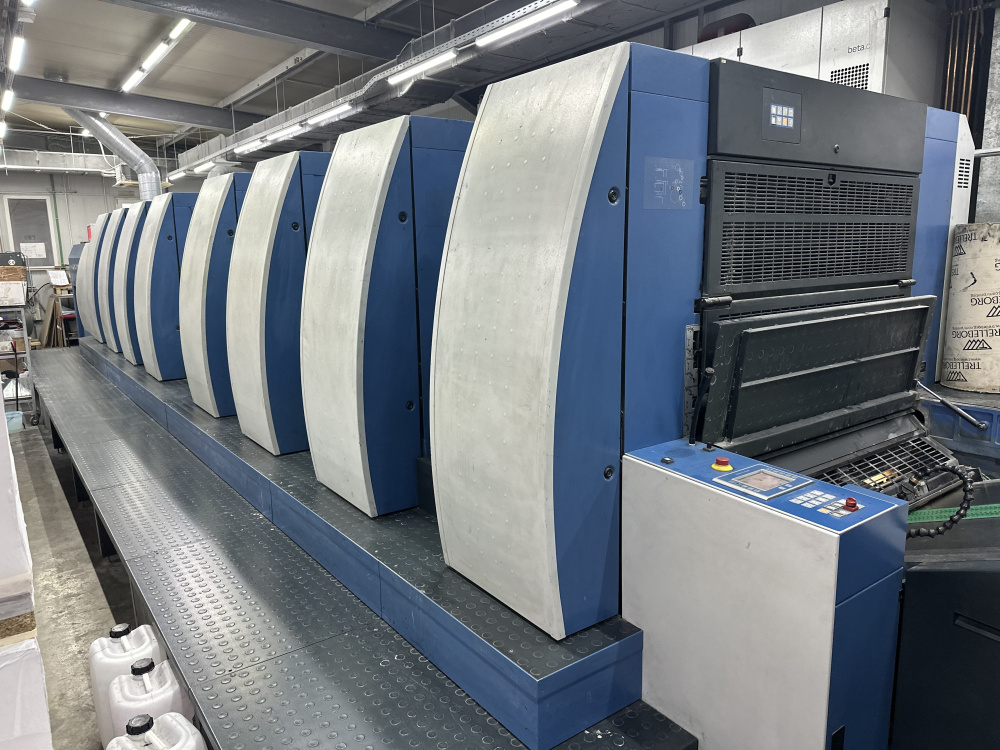

KBA Rapida 106-8 SW SPC

Technical specification

• Antistatic equipment feeder and delivery, high-performance version
• Intercommunication system between infeed and delivery
• SIS – Sensoric Infeed System, without mechanical side lay system
• Fully-automatic plate change FAPC,
• Pneumatic plate bending device at the gallery
• DriveTronic SPC - Simultaneous Plate Change incl. paper stretch compensation
• DriveTronic Plate Ident
• Inking unit temperature control without ink duct roller cooling, incl.
• Technotrans Beta C High tech combi cooling unit
• CleanTronic - Multi-purpose washing system for blankets and impression cylinders & roller washing system for conventional inks
• 1x Winding stand incl. supply reel, motorized
• 4 set Additional washing cloth spindle
• Nonstop rollers for uninterrupted production on delivery
• Powder removal (Koenig & Bauer)
• EES - Emission Extraction System
• Dynamic sheet brake with four speed – compensated suction belts
• Package water-cooling for combi cooling unit and air supply cabinet (Technotrans)
• Booster for water cooling in case of temperatures above 35°C up to 40°C (Technotrans)
• Wallscreen for visualisation of all press processes

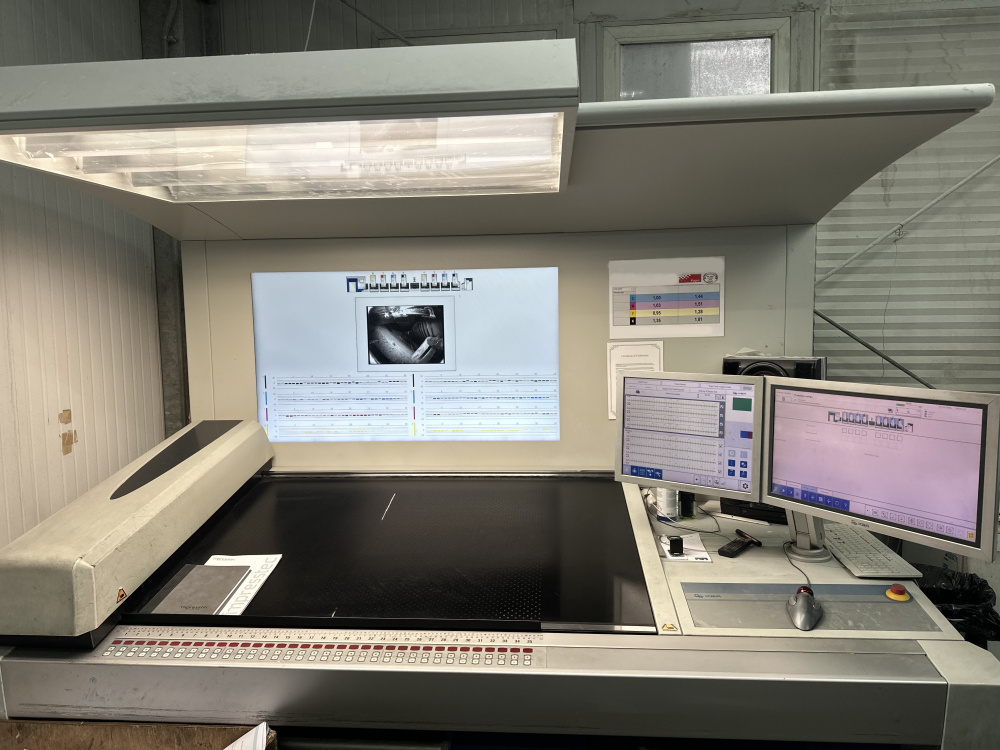

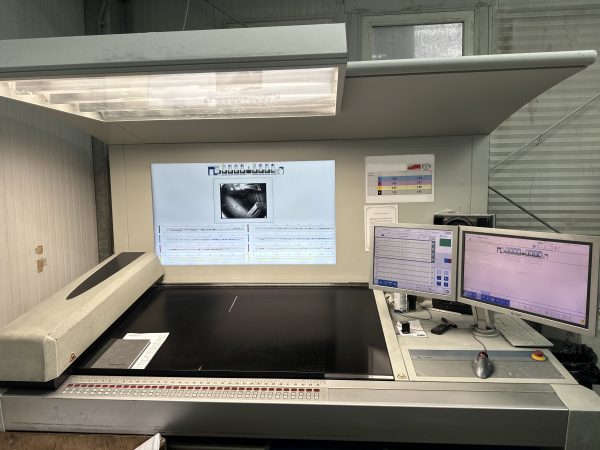

• ErgoTronic ColorControl - Automatic ink density measurement along x and y axis at the ErgoTronic console
• QualiTronic ColorControl (perfecting) - Inline ink density measurement
• ErgoTronic ICR - Integrated Camera Register, automatic register measurement at the ErgoTronic console
• LogoTronic CIPLinkX
• Digital speed display

Technical details:

• Maximum sheet size: 740 x 1060 mm
• Minimum sheet size: 400 x 480 in perfecting mode, 340 x 480 in straight mode
• Printing plate format: 795mm x 1050mm
• Maximum print format in straight printing mode: 730mm x 1040mm
• Maximum print format in perfecting mode: 720mm x 1040mm
• Blanket size: 860mm x 1070mm
• Field of application of maschine: 0,04 – 0,6 mm perfecting mode ….. 0,04 - 0,7mm straight mode
• Field of application in company: 50 – 300 g/m2 in perfecting mode, 350 gr. in straight mode
• Field of application printing sheet size in company: maximum 1050 x 740, minimum 638 x 448
• Maximum mechanical speed: 18.000 s/h straight, 18.000 s/h perfecting

Detailed specification on inquiry!
