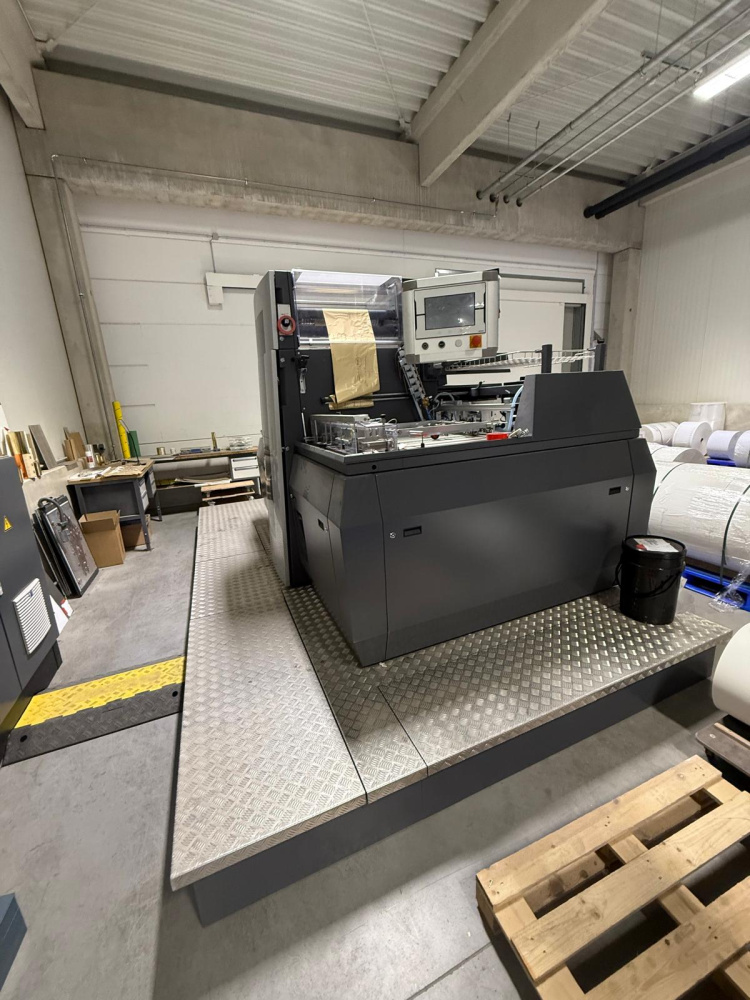

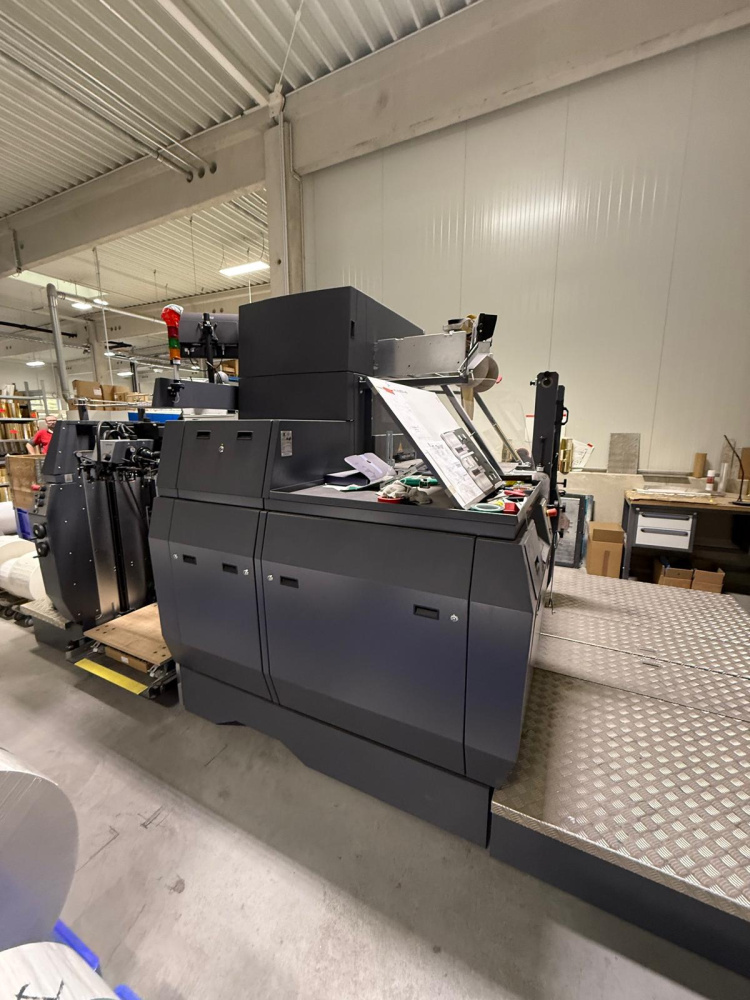

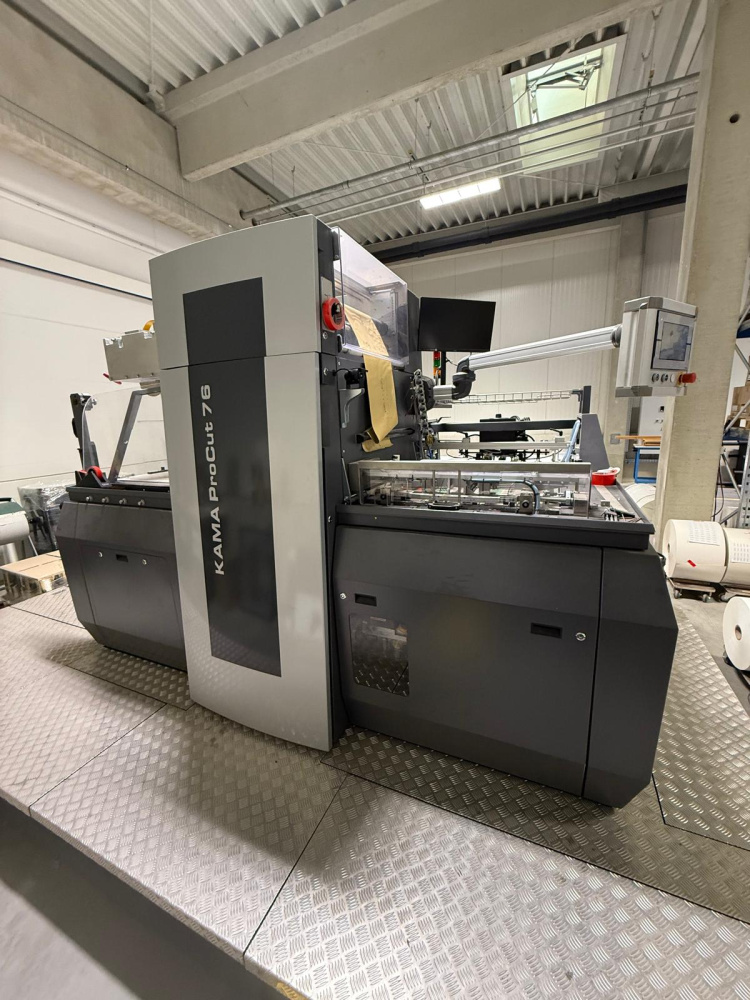

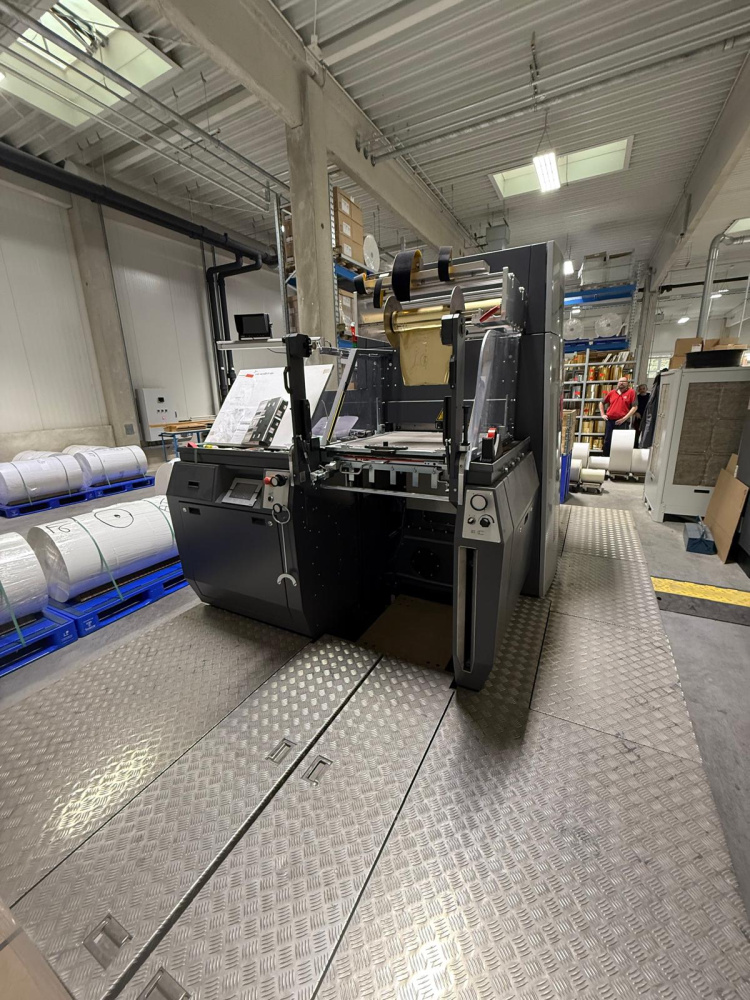

Kama ProCut 76 Foil

Technical specification

• Servo-driven sheet feeder
• motorized die-cutting pressure adjustment (MPC)
• rectangular die-cutting marks with register sensors
• electronic double-sheet detection
• 4+1 system
• 1 pc. 4 mm base plate
• 1 set of 1 mm plates (5 medium), hard
• 1 standard locking frame
• 3 pallet trolleys for feeder and delivery
• sheet feeder
• starter kits Cito + Marbach
• Premium tool clamping technology
• die-cutting pressure display with overload protection

KAMA hot foil stamping system:

• Foil transport with 2 unwinding and rewinding motors
• 1 KAMA heating frame with 6 heating zones, two carrier plates, 2 sets of mounting elements
• Foil Save software, starter kits Kurz + H&M
• Pressure/vacuum pump for blowing and suction air supply (190 Nl/min at 6 bar compressed air)
• Electrical equipment: 400 V, 50/60 Hz, 3-phase (no transformer included)
• Prepared for remote service via Internet (Ethernet)

Additionally:

• 2 additional pallet trolleys for feeder and delivery (total of 5)
• KC1020 – AutoRegister AR³
• With two cameras: registers each sheet in X and Y direction as well as rotation.
• KC1030 – Servo main drive for asynchronous drive cycle
• Up to 50% increased machine speed or longer contact time for hot foil stamping
• KC1040 – Surcharge for Big Bite Gripper (BBG)
• With extended opening (instead of standard gripper)
• KC1060 – Surcharge for PIAB system for central blowing, pressure, and vacuum air supply 1,300 Nl/min at 6 bar compressed air instead of DN pump
• KD1020 – Universal locking frame with fine adjustment for all tool sizes
• Variable die-cutting, creasing, perforating forme
• Marbach 3 × X + 3 × Y creasing rules

Detailed specification on inquiry!
