INO PRINT VS6 500

Technical specification

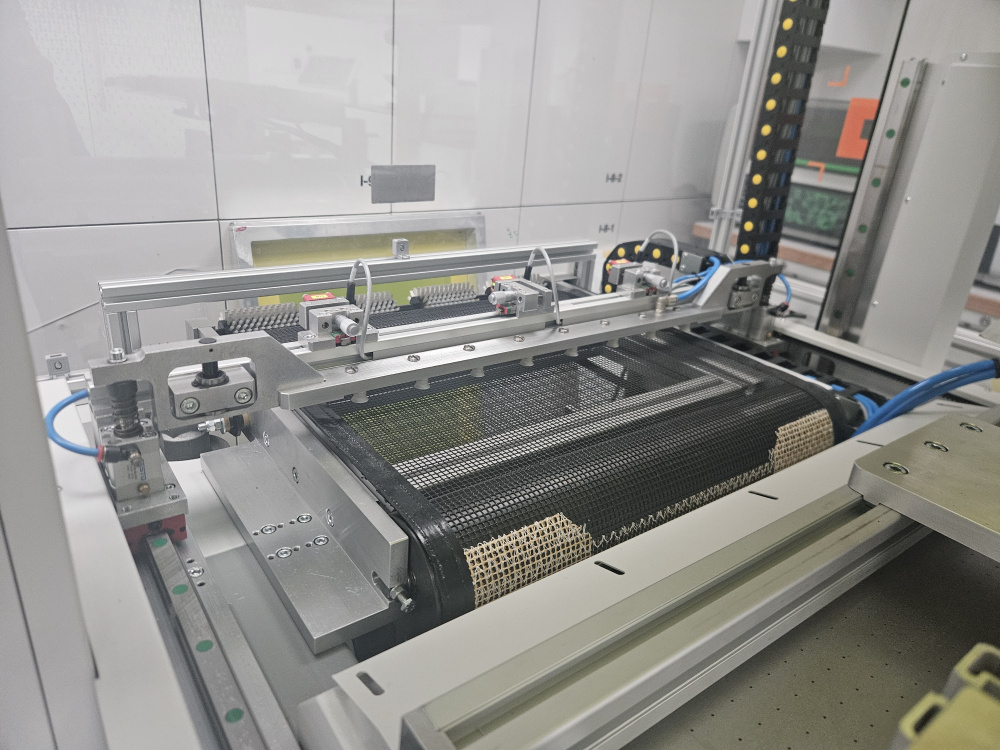

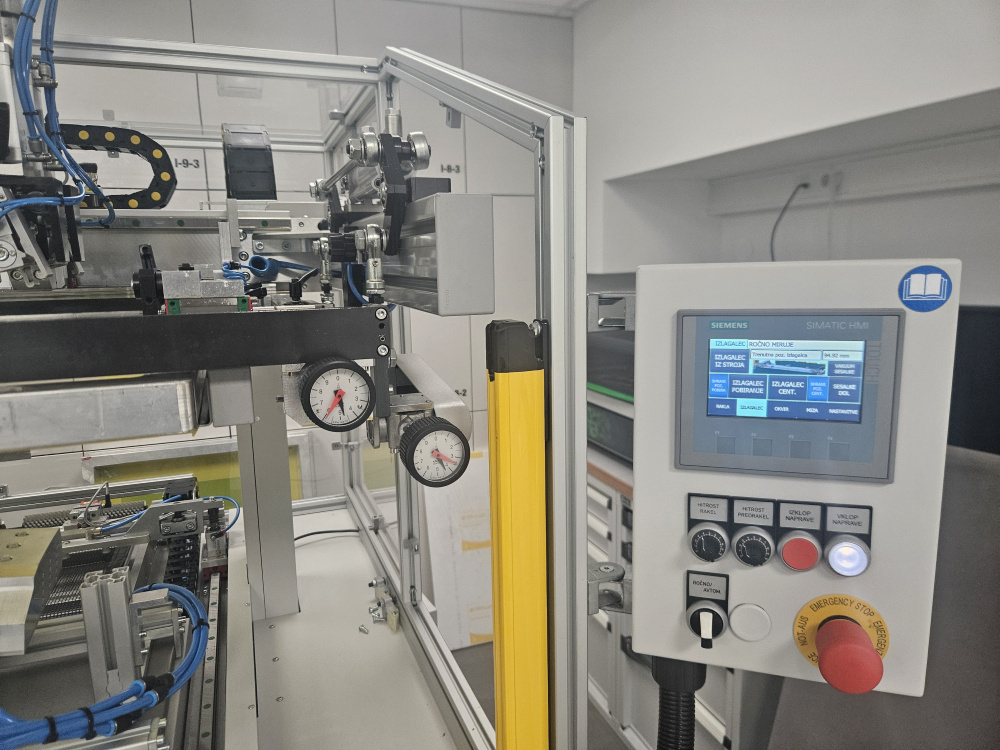

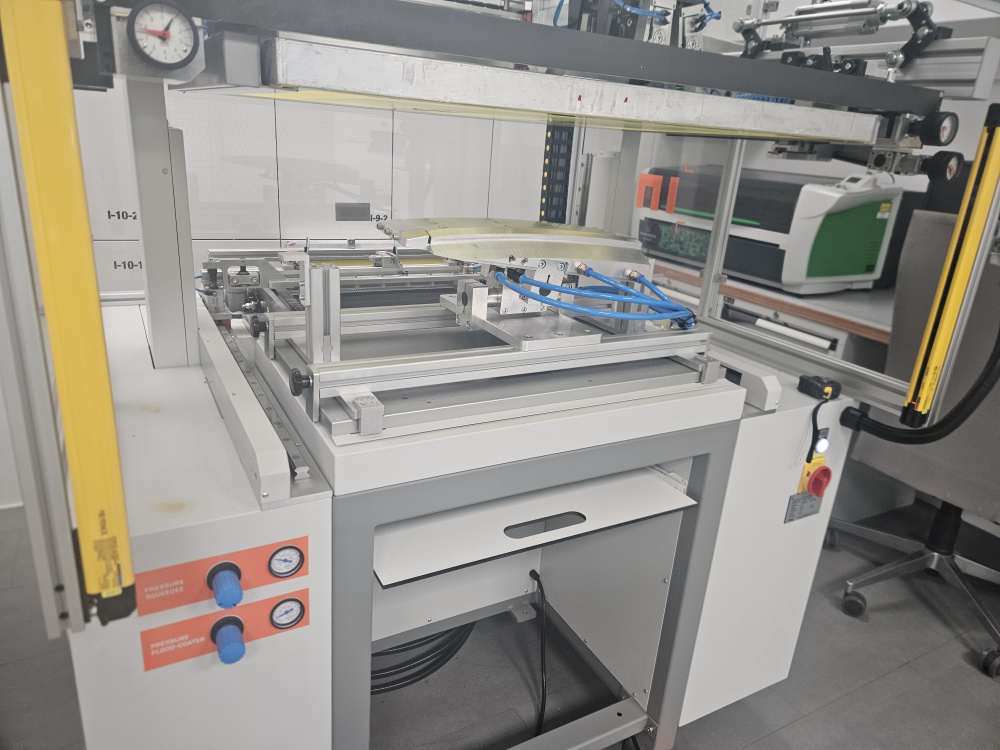

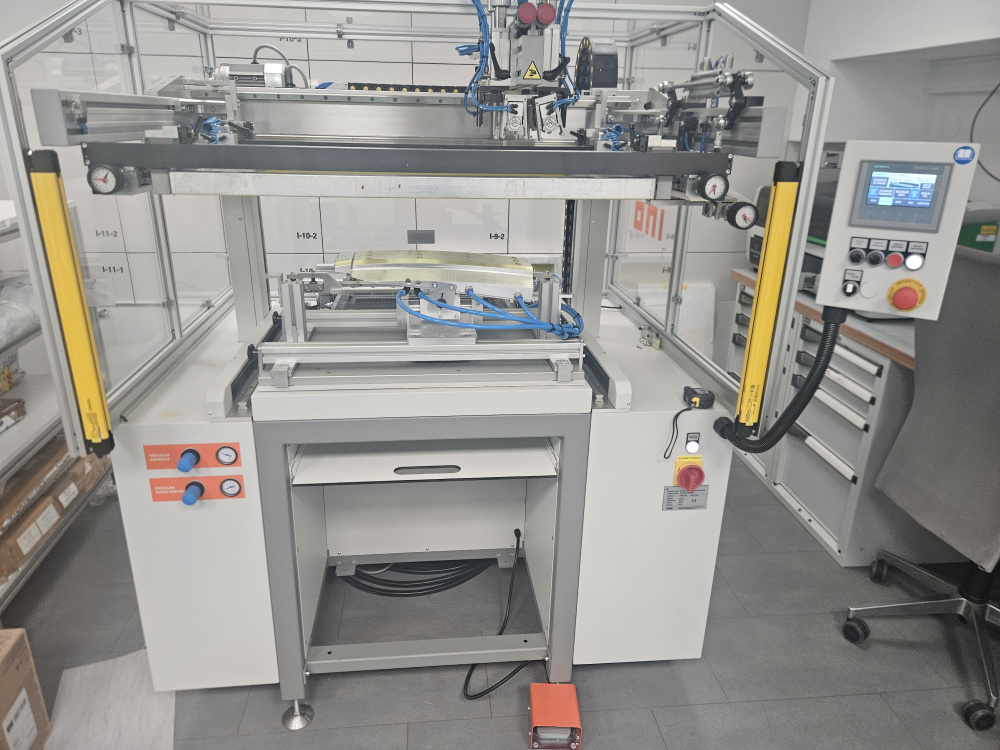

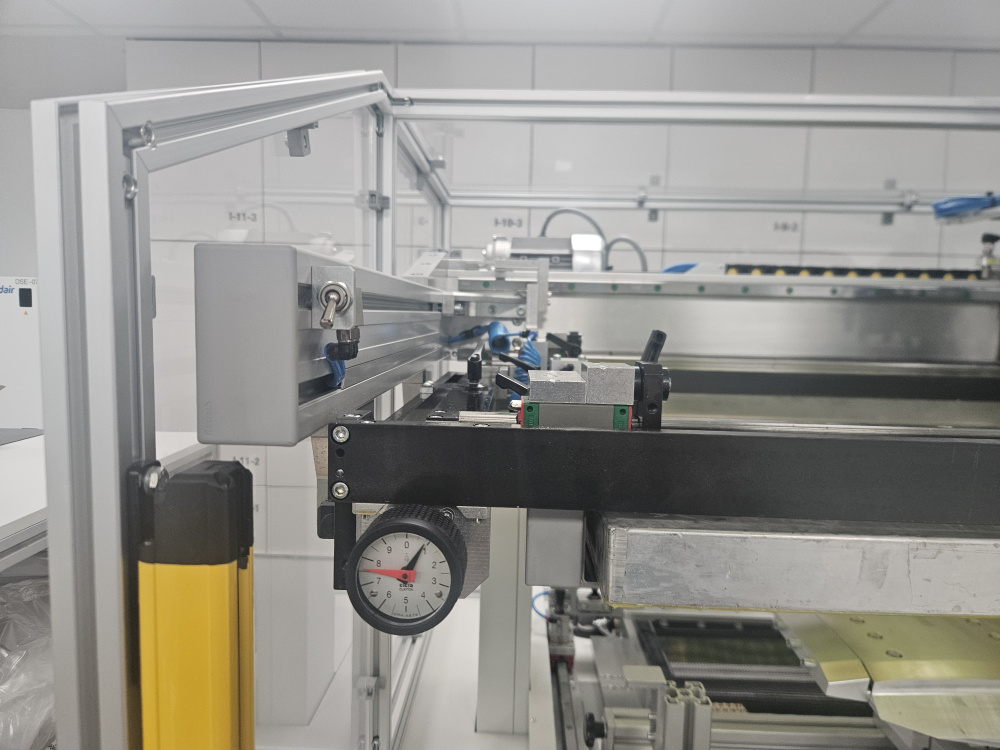

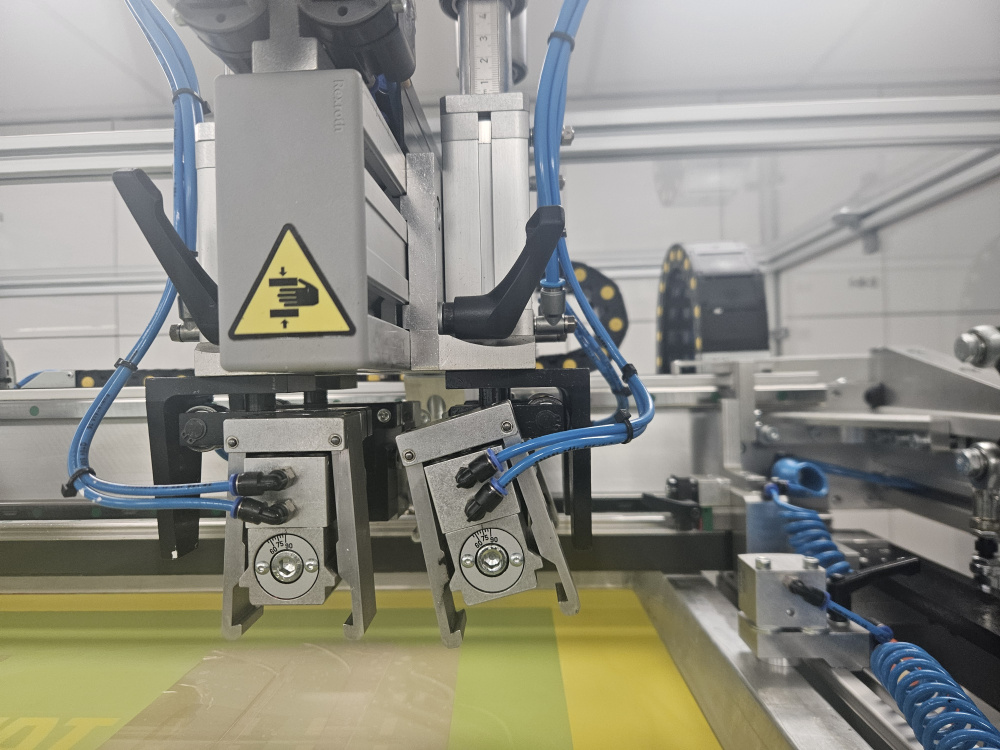

• 3/4 used automatic screen printing machine PRINT VS6 500

The PRINT VS6 is modernly designed screen printing machine for printing on different materials (foil, paper, cardboard, self-adhesive material etc.) on vacuum table.

Easy handling, swift tool exchange, fine regulation of all for printing important parameters are just some of the equipment highlights.

• Automatic take-off device

increases productivity up to 30% and print quality as well as renders operator’s service easier as he only takes care to load printed materials. Take-off could be performed from any position of the vacuum table.

• Servo drive of lifting system

servo drive saves expensive air consumption.

screen retraction when loading is adjustable up to 450 mm.

max printing object height is 400 mm.

• Automatic positioning on vacuum table on previous digital print

• Technical data of PRINT VS6 500:

max. sheet format 500 x 350 mm

max. print format 495 x 330 mm

material thickness For automatic off-loading: up to 2 mm

for manual off-loading: up to 400 mm

max. screen dimension 900 x 700 mm

screen frame height 30 - 40 mm

Vacuum table height 950 ±25 mm

Detailed specification on inquiry!
