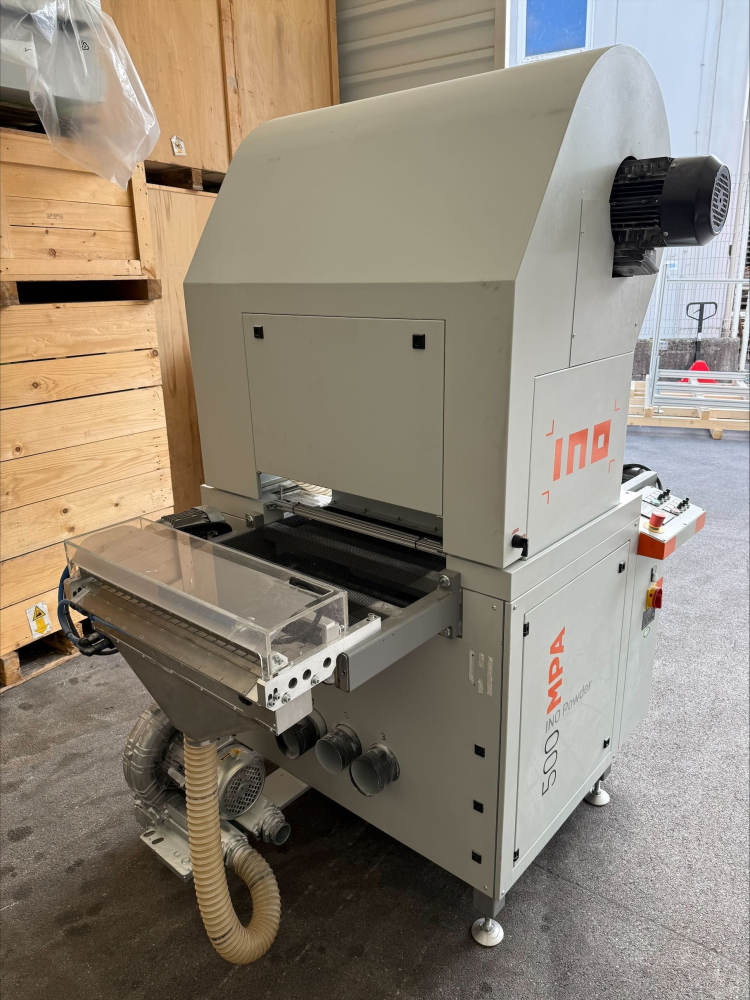

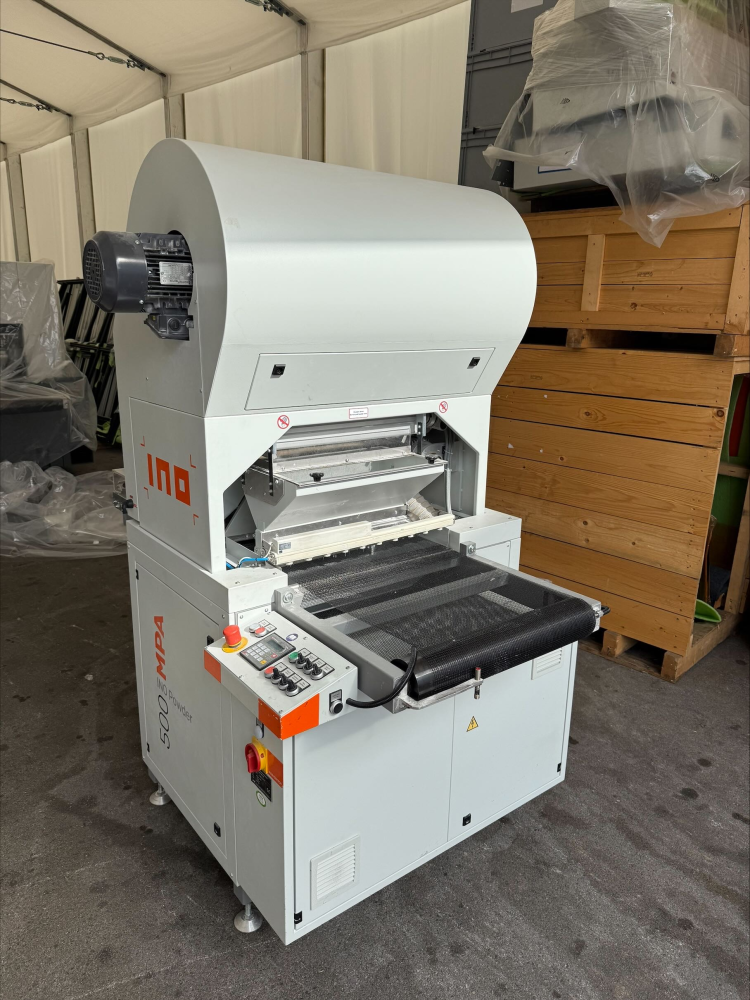

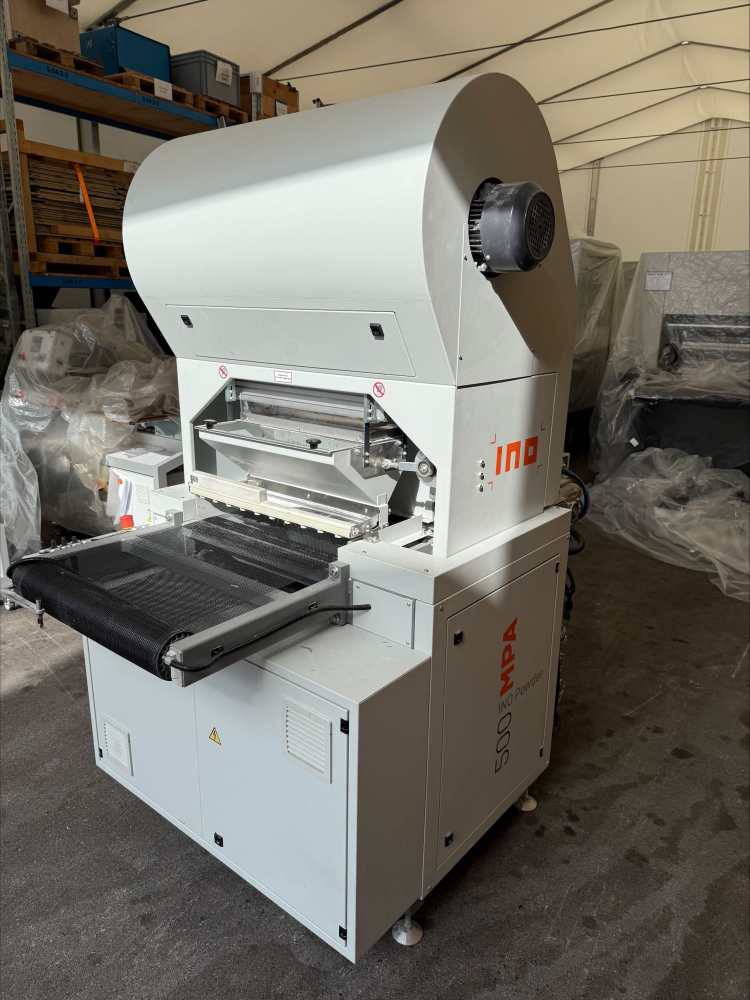

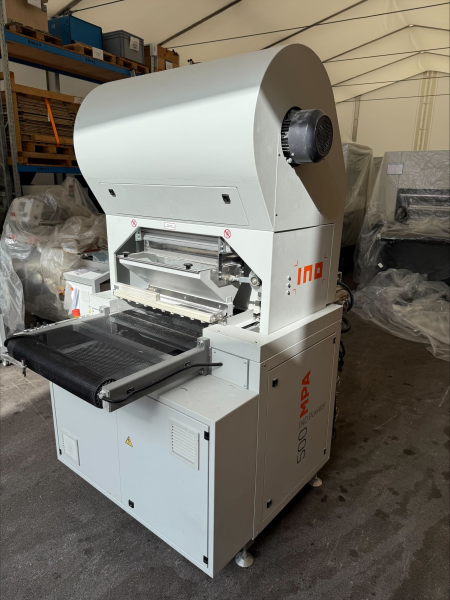

INO POWDER MPA 500 - melt powder application machine

Technical specification

Melt powder application machine POWDER MPA 500

• Anti-static conveyor belt to maintain a smooth sheet transport with uniform powder coat application
• Frequency controlled motors with variable drive speed
• Dual vacuum extraction system, acting from top and bottom of the passing sheet, to provide highly-effective removal of excess powder
• Quick change-over between different powder types
• Preset parameters for application of different powder types
• Laser sensors, reading the sheet pass – for continuous operation or »start & stop« application mode
• Brush roller on exit

Technical data:

• max sheet width 500 mm
• conveyor belt width 540 mm
• max material thickness 2 mm
• powder range 80 - 200 μm with antistatic treatment
• conveyor belt height 940 ±25 mm
• conveyor belt speed 0 – 10 m/min

Detailed specification on inquiry!
