| Reference number: | 2062 |
| Manufacturer: | INO automatic stacking device |
| Model: | STACKER AS1 500 |
| Year of production: | 2017 |
| Format / Working width: | working width max 500 mm |
| Available: | immediately |
| Machine visible: | stock |
| Price: | on request |

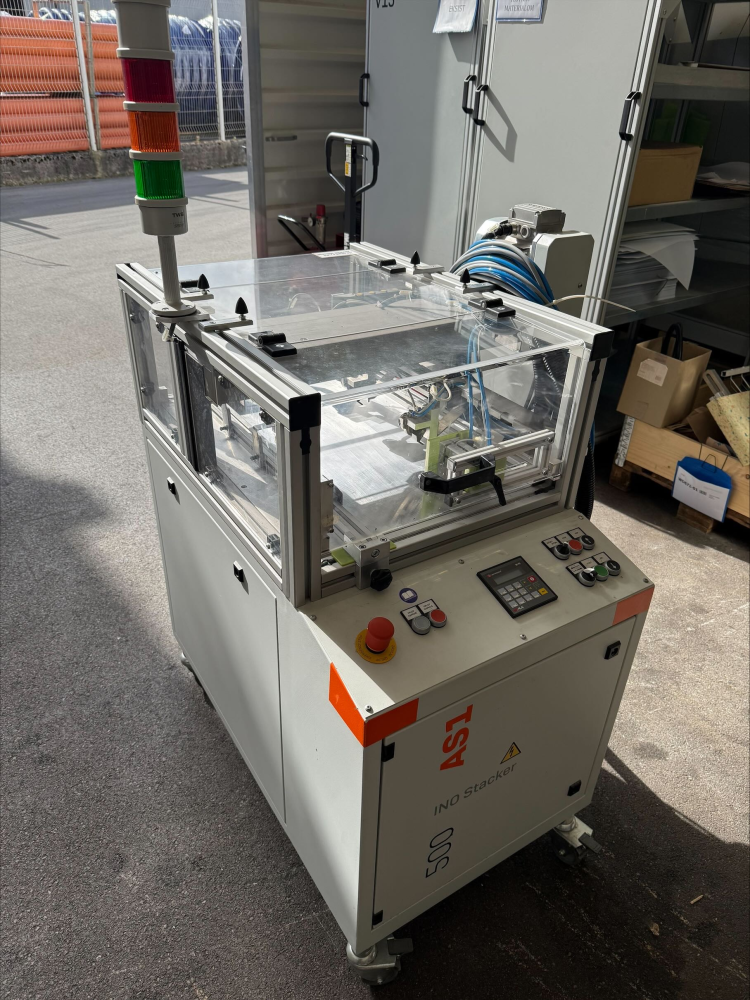

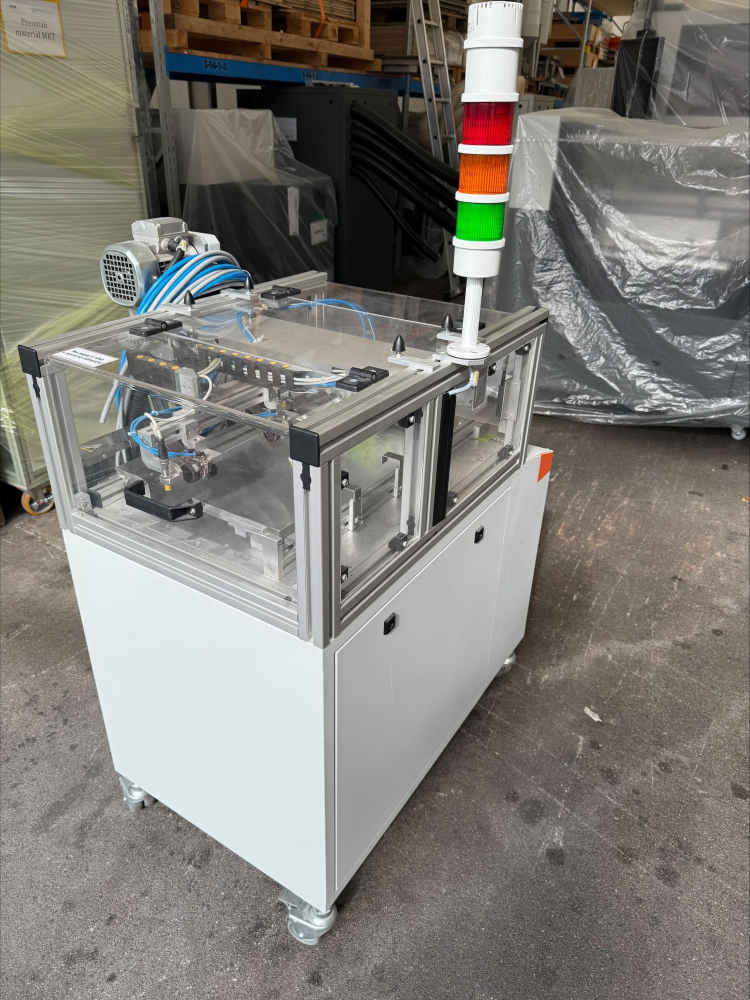

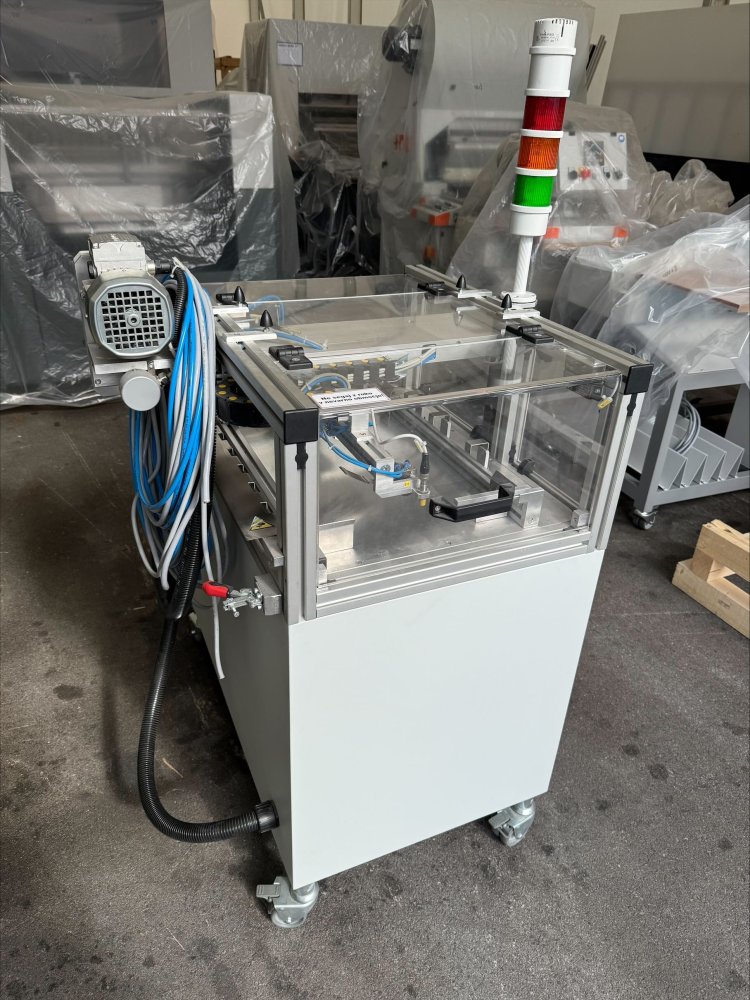

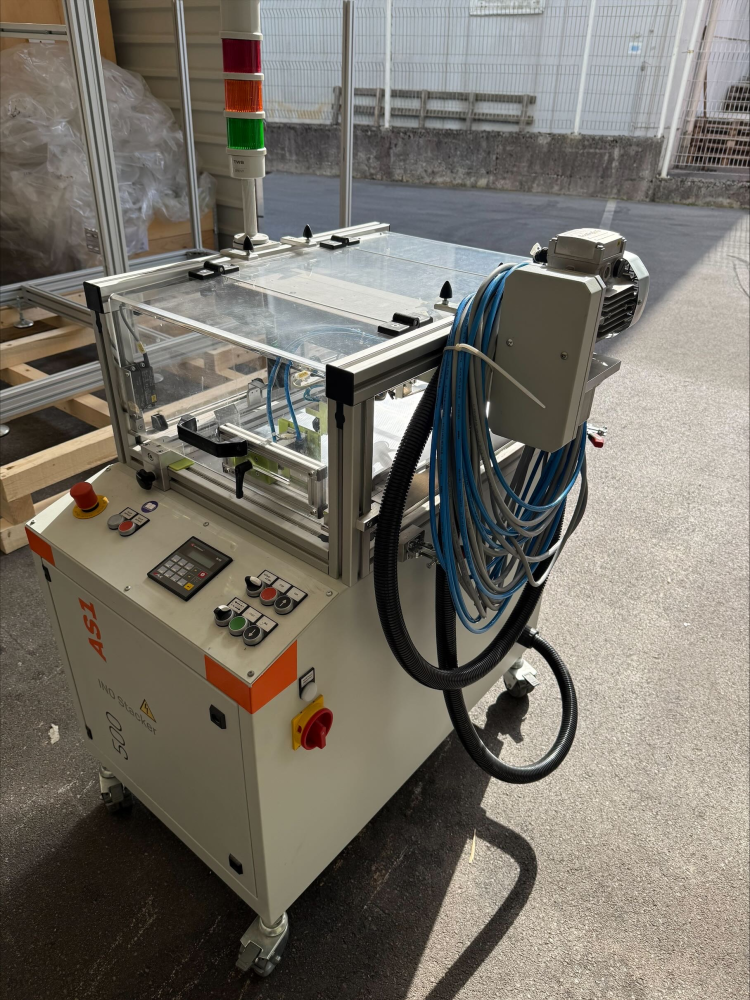

Automatic stacking device STACKER AS1 500
Automatic sheet stacker to collect printed and dried sheets from the outlet of the conveyor dryer; alignment and piling up of the sheet substrates.
Automatic alignment of sheets, approaching from the dryer outlet
Detection of the leading sheet edge, gripping and pulling the sheet onto pile – no scratching of the forerunning sheet
Pile flaps for sheet edge alignment
Anti-static discharge bar
Technical data of STACKER AS1:
Max. sheet infeed rate to 1000 pcs/h
Inlet shelf height 940 ±25 mm
Max. pile height 35 mm
Detailed specification on inquiry!
