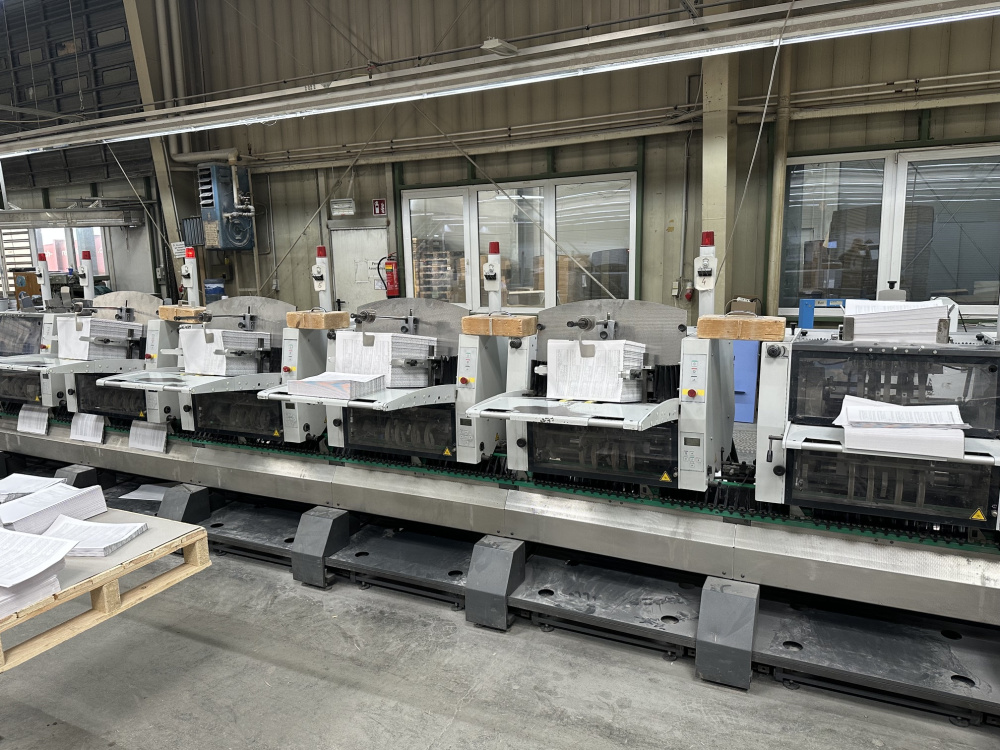

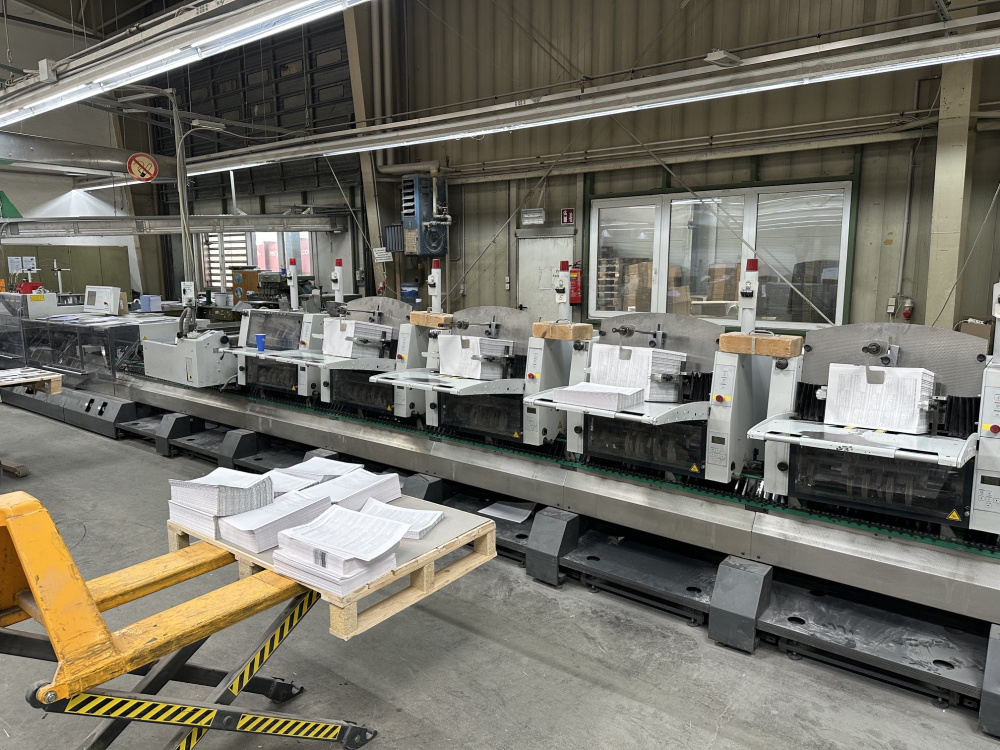

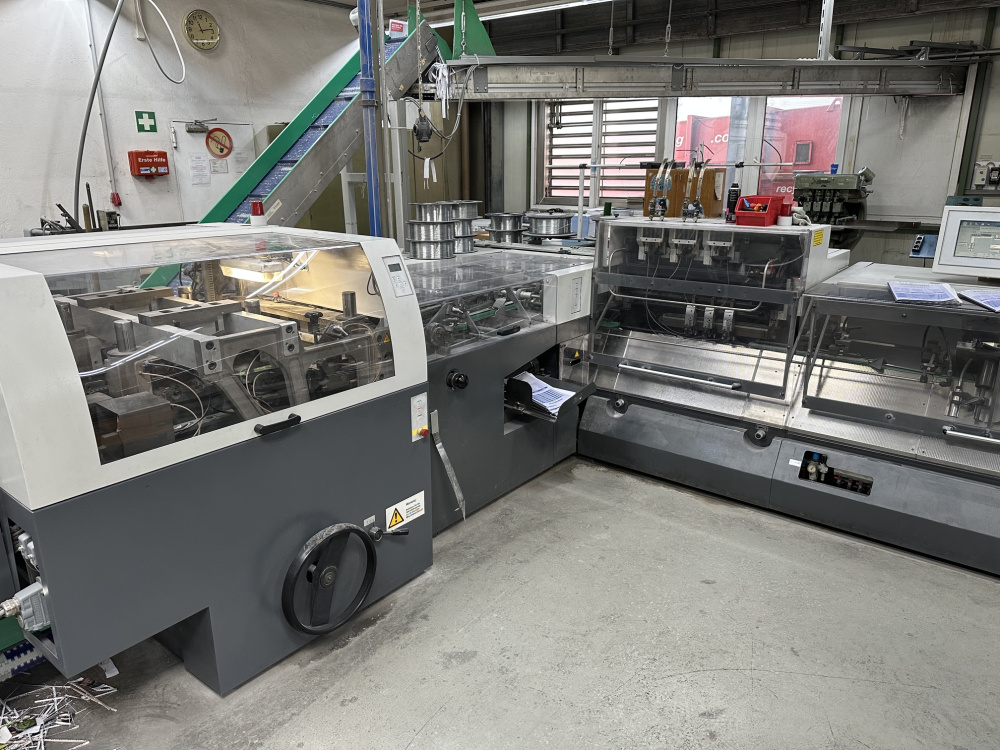

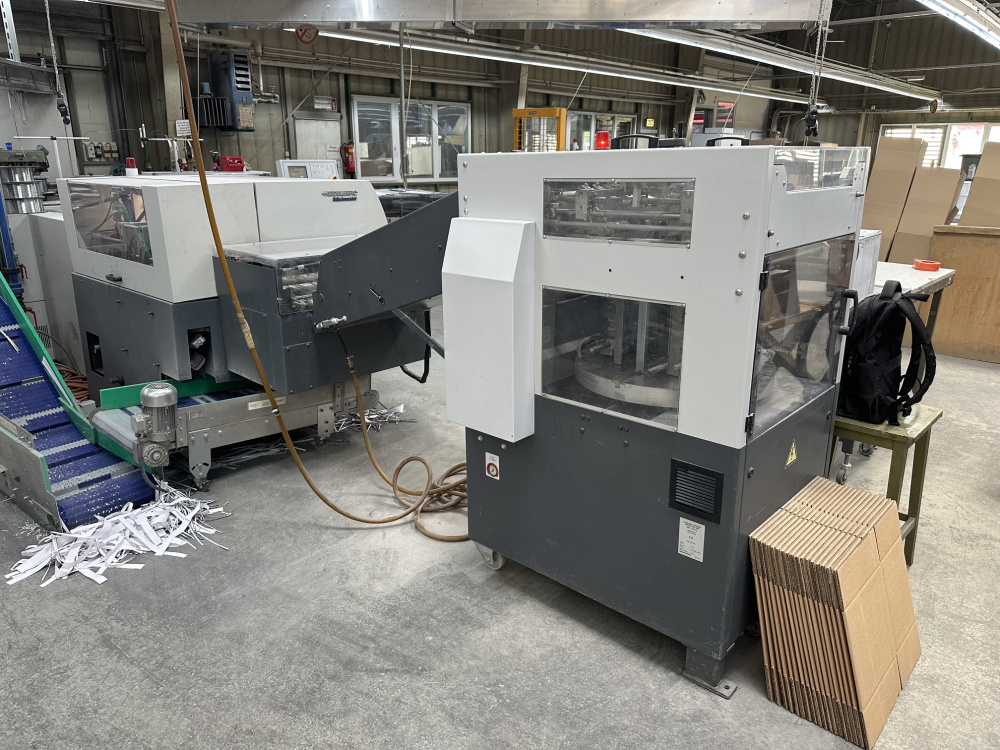

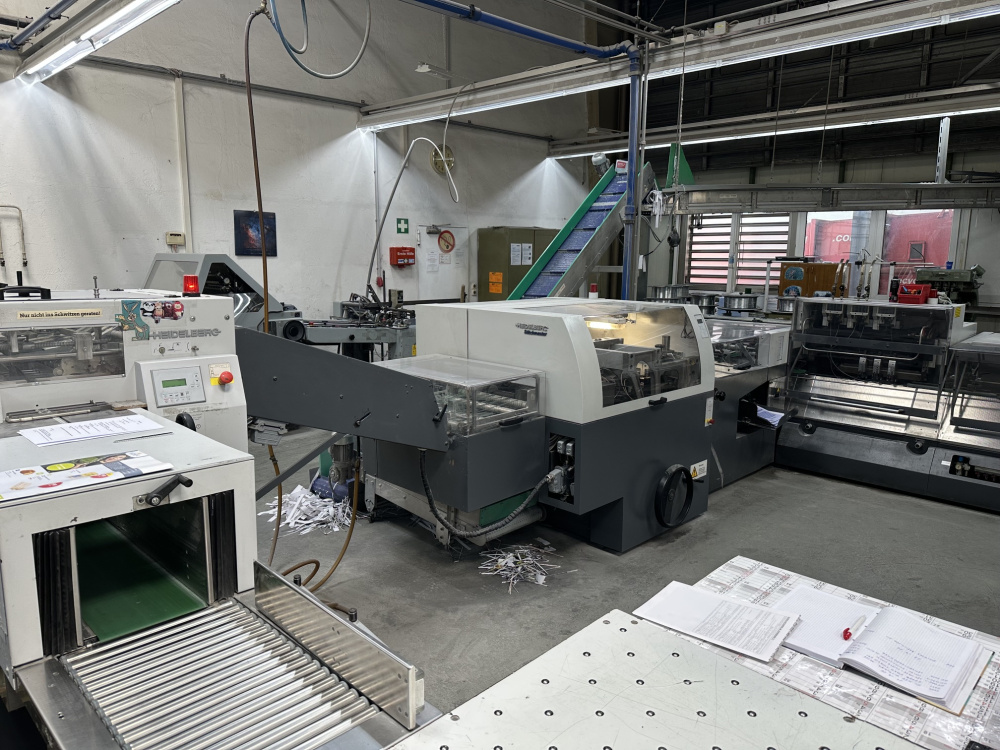

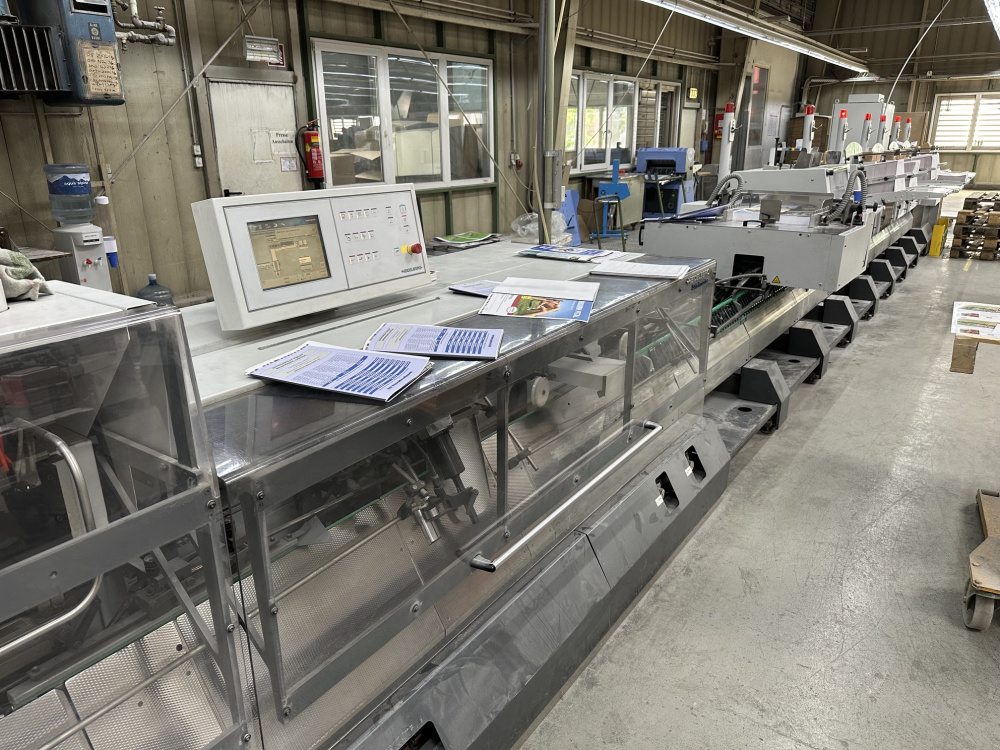

Heidelberg ST 450

Properties

Reference number: IMP2127
Manufacturer: Heidelberg
Model: ST 450
Year of production: 2007
Press / Working hours: /
Format / Working width: 480 x 320 mm
Available: immediately
Machine visible: in produktion
Price: on request

Technical specification

  • Color monitor
  • Semi-automatic setting
  • cover feeder
  • 4 drum feeders vertical
  • 2 drum feeders horizontal
  • Stitching station with stitching heads
  • ring eyelet stitching heads
  • Thickness control
  • Large spool carrier
  • Electric wire feed
  • Ejection for incomplete products
  • Three-knife trimmer/trimmer
  • center cutting device
  • stacker delivery
  • vacuum pumps

Technical specifications:

  • Performance: up to 14,000 cycles/h
  • Product thickness max.: 12 mm
  • Format untrimmed max.: 480 x 320 mm
  • Format untrimmed min.: 128 x 85 mm
  • Format trimmed max.: 475 x 315 mm
  • Format trimmed min.: 120 x 80 mm

Detailed specification on inquiry!
