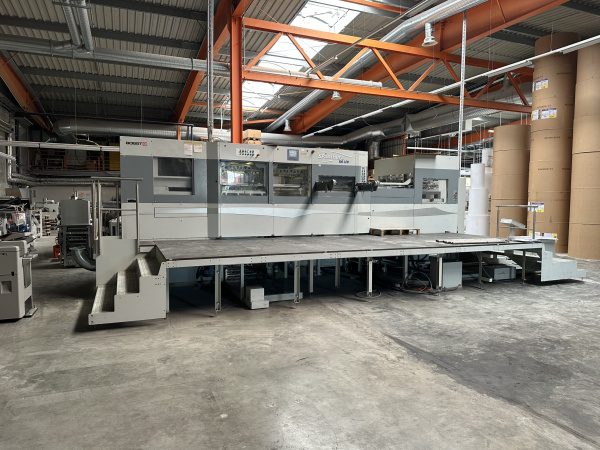

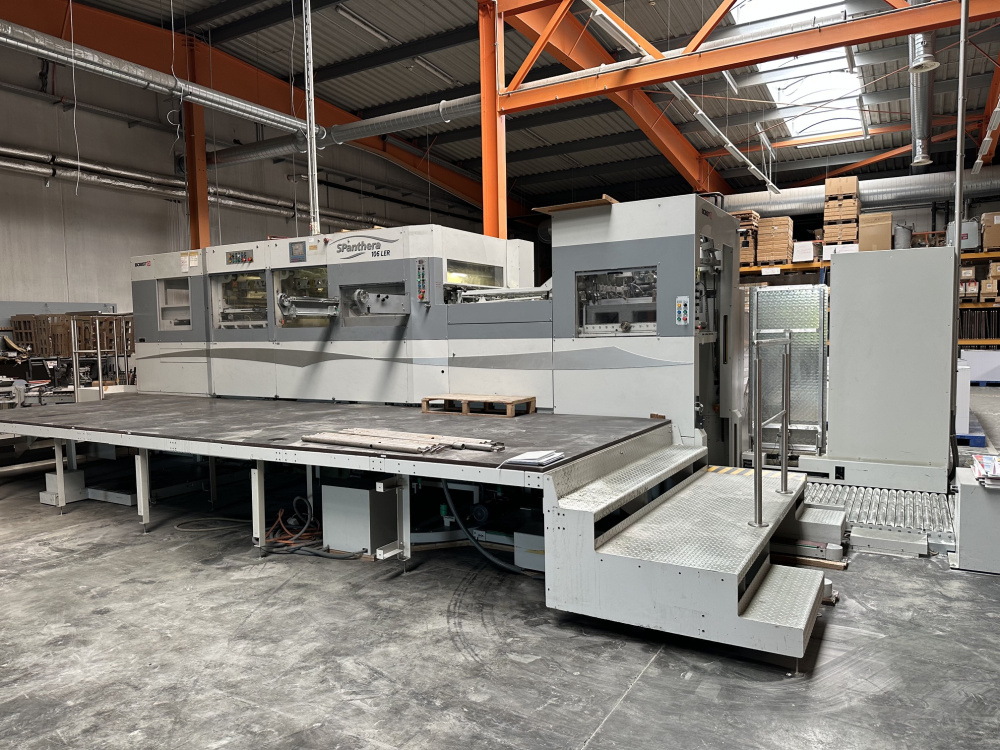

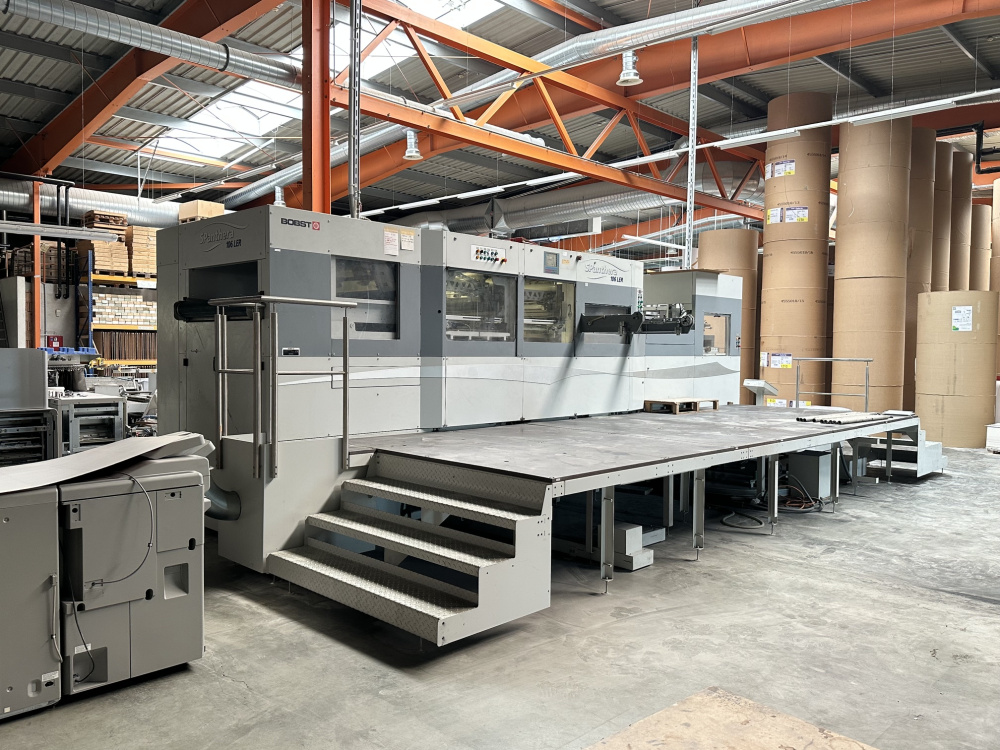

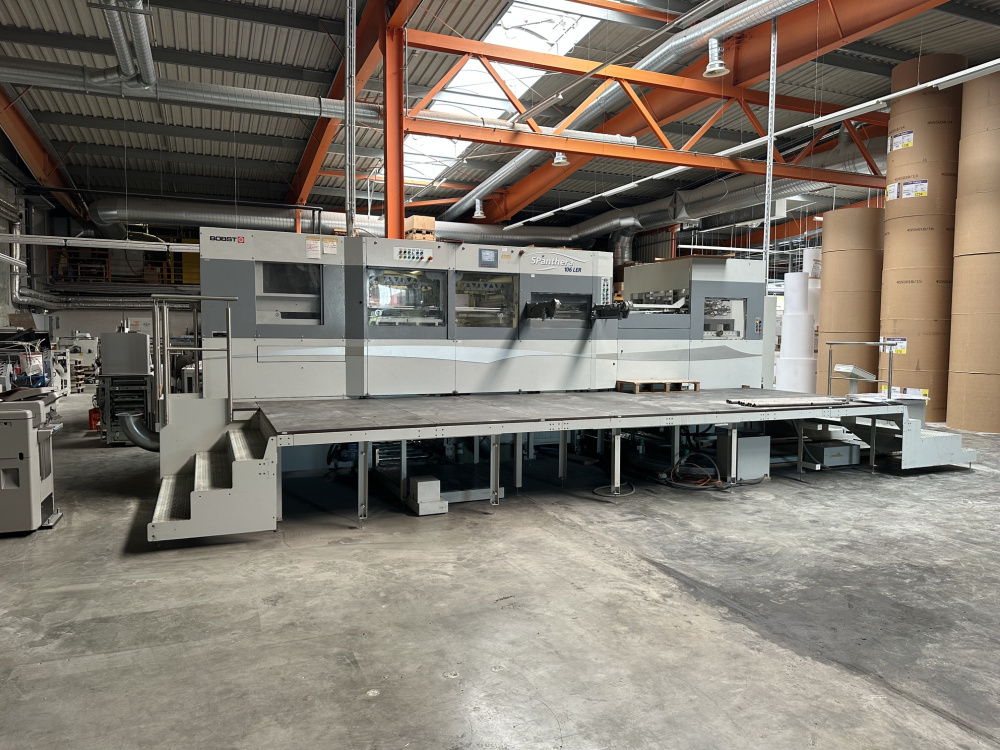

Bobst SPanthera 106 LER

Technical specification

Equipment:

• Lower drawer frame
• Lower stripping equipment
• Mounting material for top tool quick-lock system
• Bernoulli braking system – waste stripping section
• Bernoulli braking system – delivery section
• VIEW Kit
• Interface for APT at feeder
• Podium extension with walkway
• High-speed paper feeding device
• Auxiliary blower device for locking section
• Automatic non-stop rack with side adjustment for APT
• Special APT execution “customer specification”
• Motorised vertical adjustment of suction head
• Reinforced transport equipment
• Double-sheet control with contact
• Lower universal blanking tool – Angle Lock system
• Universal frame Angle Lock
• Device for full-sheet delivery
• Warranty extension
• Podium for existing Speria 106E No. 0538 006 02
• Production & Performance:
• Maximum Mechanical Speed: up to 9,000 sheets/hour
• Automatic register system: Included
• Blanking Capability: Yes (LER = Logistics, Extraction, Removal = full blanking section)
• Stripping Section: Full automatic 3-frame stripping
• Non-Stop Functionality:
• Non-stop feeder (continuous pile logistics)
• Non-stop delivery (automatic pile change)
• Format & Substrate Capabilities:
• Max. Sheet Size: 760 × 1,060 mm
• Min. Sheet Size: approx. 350 × 400 mm
• Max. Cutting Size: 745 × 1,055 mm
• Gripper Margin: approx. 8–10 mm
• Paperboard Thickness: 0.1 – 2,000 g/m² (paper to heavy board)
• Corrugated Board: up to N-flute / F-flute (depending on tooling)
• Max. Cutting Pressure: up to 260 t (BOBST Autoplatine standard)

Included Standard Options:

• Upper quick-lock frame
• Compensation plate

Detailed specification on inquiry!
