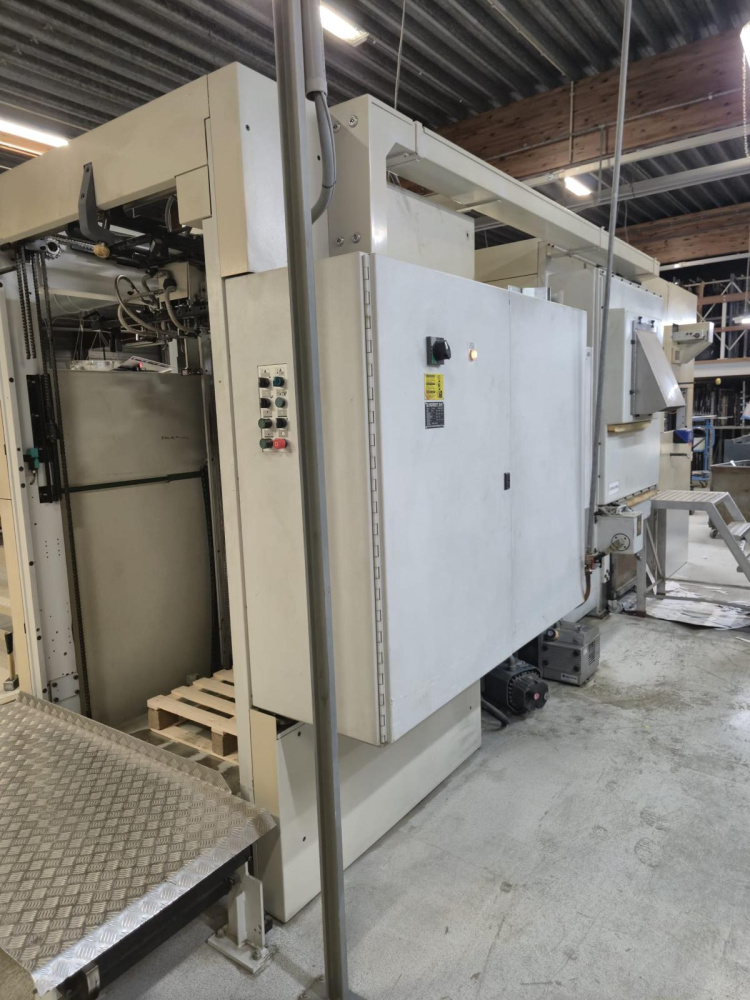

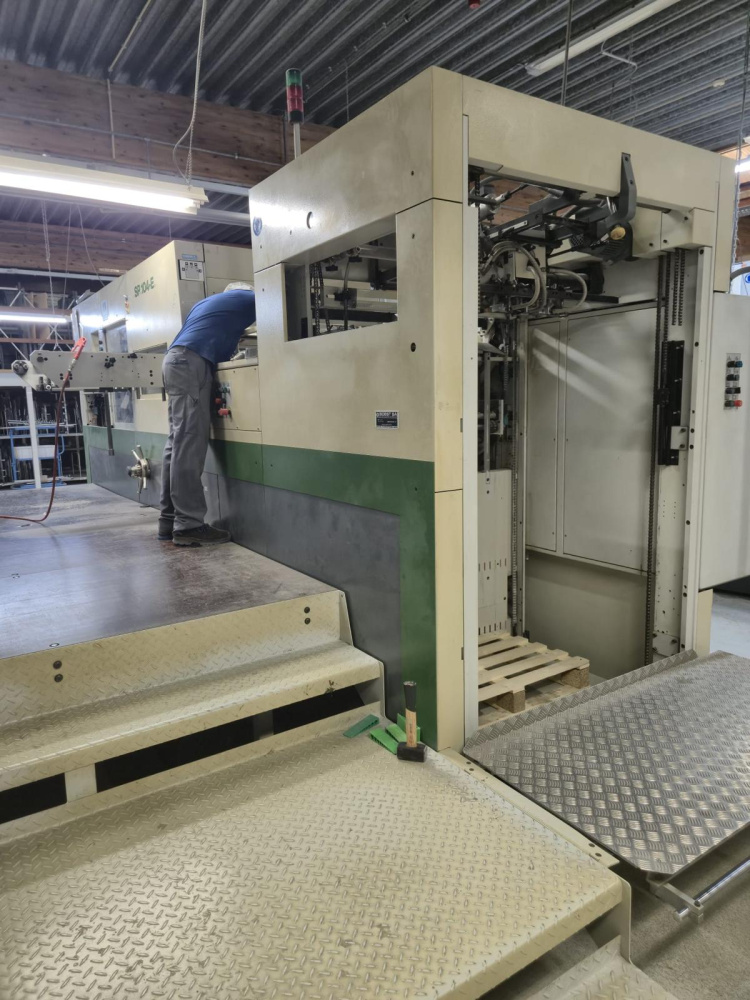

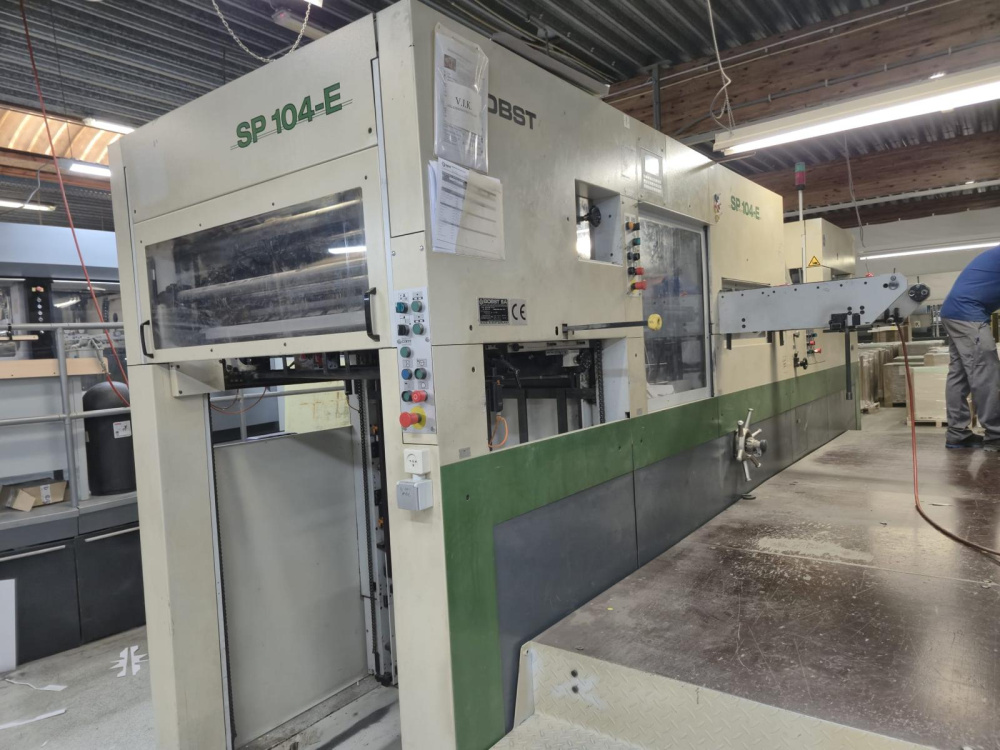

Bobst SP 104 E

Reference number: 1295
Manufacturer: Bobst
Model: SP 104 E
Year of production: 2002
Press / Working hours: 35600
Format / Working width: 1040 x 740 mm
Colors / Number of units: /
Available: March 2020
Machine visible: in production
Price: on request

Technical specification

Equipped for/with:

  • diecutting paper - different types of cardboard
  • specially equipped for plastic materials
  • Bobst feeder III-B
  • feeder table

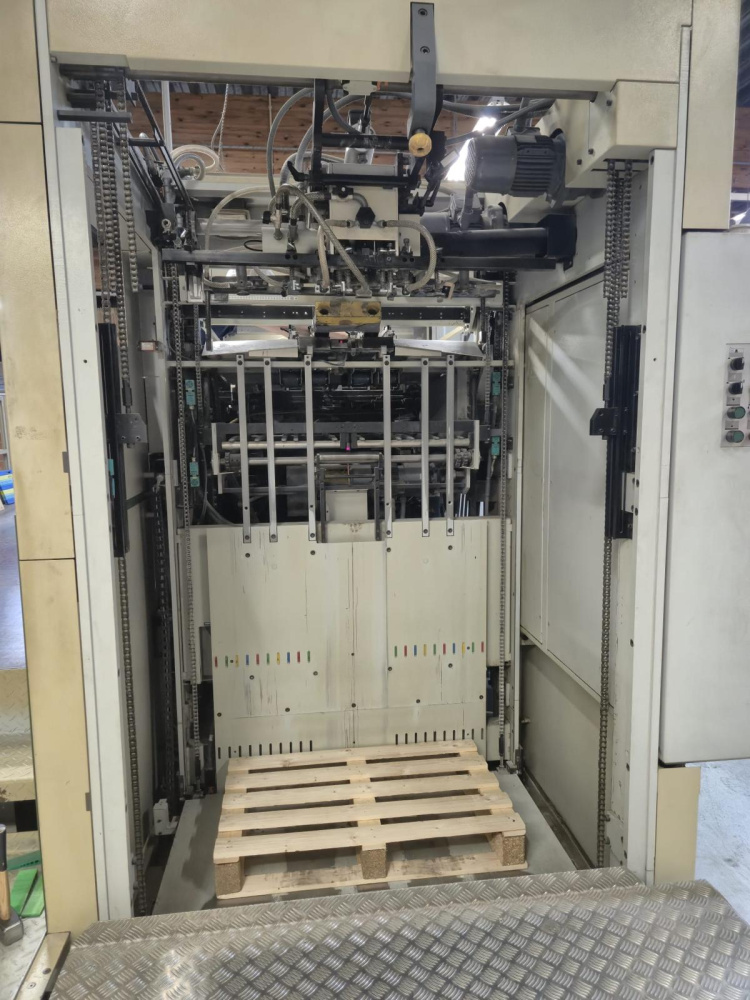

  • diecutting section
  • stripping section
  • non-stop delivery
  • Centerline system
  • Bobst C.U.B.E.
  • double sheet control
  • diecutting device for H-V papers
  • Bernoulli system at stripping station
  • antistatic device
  • pulling side lay
  • double sheet detection
  • upper cutting chase type quicklock
  • chase changer/loader
  • upper stripping frame
  • lower stripping frame
  • max. speed 8000 sheets/hour
  • max. pressure 250 T
  • maximum sheet size: 740 x 1040 mm
  • minimum sheet size: 400 x 350 mm

Materials:

  • paper min. 80-90 g/m²
  • solid board up to 2000 g/m²
  • currogated board up to 4 mm


Detailed specification on inquiry!
