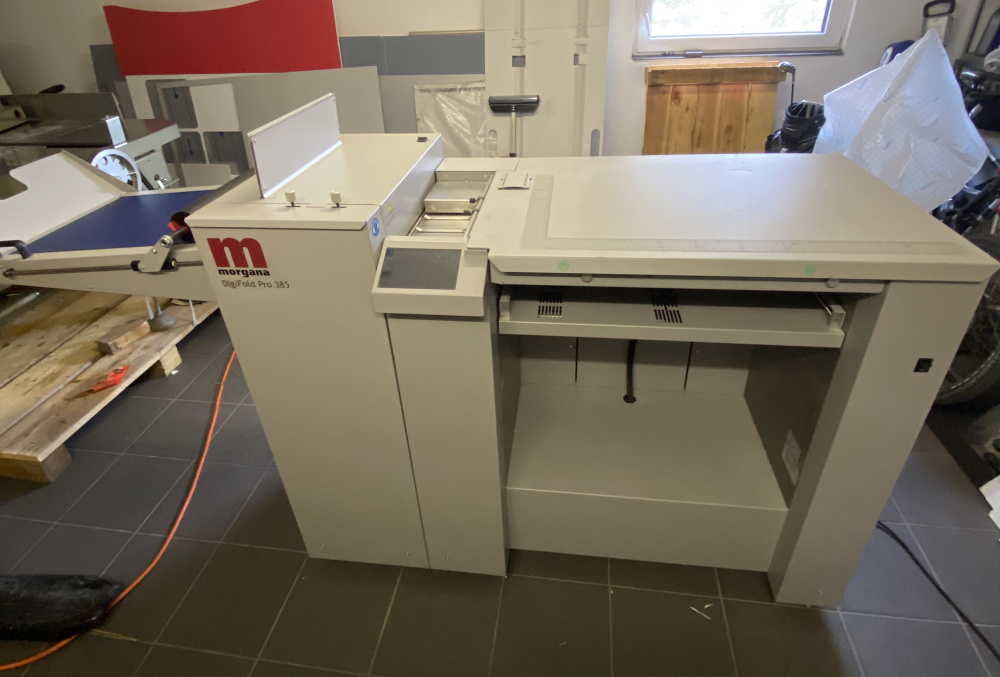

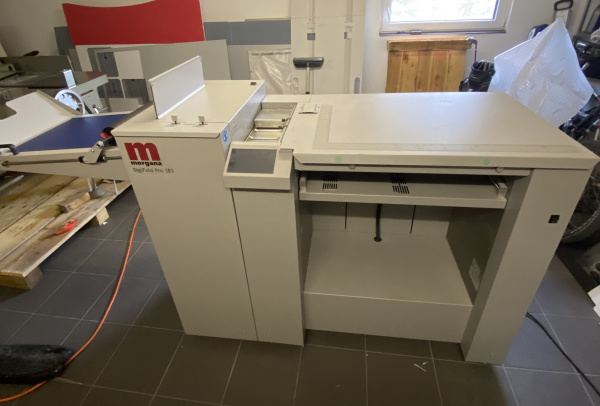

Morgana DigiFold Pro 385

Technical specification

High Speed Creaser Folder with fully automatic setup and deep pile feeder

Key product features:

• Crease and fold sheets up to 0.4mm without cracking
• Intuitive SmartScreen touch screen control
• Suction fed top feeder
• Deep pile 450mm capacity feeder
• SmartStep table drop • 6000 sheets per hour
• Crease only mode
• Patented flying knife folding mechanism
• Max sheet size - 385mm x 700mm
• Creasing blade and matrix guaranteed for life
• In-line perforating as standard

Technical specification:

• Maximum paper size: 385 x 700 mm
• Minimum paper size: 148.5 x 210 mm
• Paper weight: 0.11mm (approx 80gsm uncoated)* - 0.4mm (approx 400 gsm)*
• Operation: 7” touch screen
• Job memories: Preset jobs / customized job (50 memories)
• Feeder Pile height: 450mm
• Maximum number of folds per sheet: 2
• Minimum repeat crease distance: 1mm
• Creasing blades: 2
• Minimum repeat fold distance: 70mm (depending on paper weight)
• Minimum crease distance from lead edge: 2.5mm
• Minimum fold distance from lead edge: 50mm (depending on paper weight)
• Minimum crease distance from tail edge: 2.5mm
• Minimum fold distance from tail edge: 50mm (depending on paper weight)
• Minimum fold length: 70mm
• Speed per hour (A4 in half): 6000 sph
• Dimensions: L2275 x W680 x H1270mm (approx)
• Weight: 260kgs (approx)
• Power requirement: 100-240v 50/60hz

Detailed specification on inquiry!
