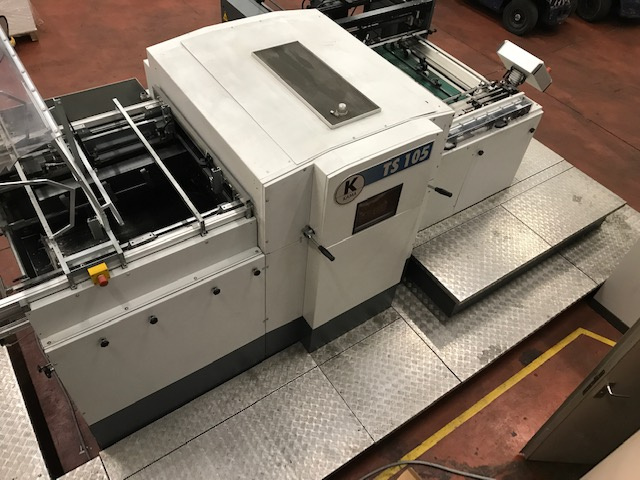

Kama TS 105

Sold Kama TS 105
Kama TS 105
Kama TS 105
Kama TS 105
Kama TS 105
Kama TS 105
Kama TS 105
Kama TS 105
Reference number: 1320
Manufacturer: Kama
Model: TS 105
Year of production: 2006
Format / Working width: 740 x 1050 mm
Available: immediately
Machine visible: in stock
Price: on request

Technical specification

  • automatic die cutter for paper, cardboard, plastics, micro-corrugated board up to 1.500 gsm/1,8 mm
  • maximum sheetsize: 740 x 1050 mm
  • minimum sheetsize: 330 x 480 mm
  • maximum cutting size: 720 x 1030 mm
  • paper/cardboard thickness: 130 gr - 1500 gr/m²
  • maximum gripper margin: 10 mm
  • maximum speed: 4.500 sheets/hour
  • maximum cutting force: 1,5 MN
  • maximum stacking height in the feeder: 1150 mm
  • maximum stacking height in the delivery: 880 mm
  • weight: 9.200 kg
  • dimensions: 6.450 x 3.300 x 2.350mm (l x w x h)
  • electrical information: 400 V, 40 A, 20 kW

Detailed specification on inquiry!
