Duplo DBM 600i

Sold Duplo DBM 600i
Duplo DBM 600i
Duplo DBM 600i
Duplo DBM 600i
Duplo DBM 600i
Duplo DBM 600i
Reference number: 1154
Manufacturer: Duplo
Model: DBM 600i
Year of production: 2015
Press / Working hours: 1,2 mio
Format / Working width: 356 x 508 mm
Colors / Number of units: 20
Available: 8-2018
Machine visible: in produktion
Price: on request

Technical specification

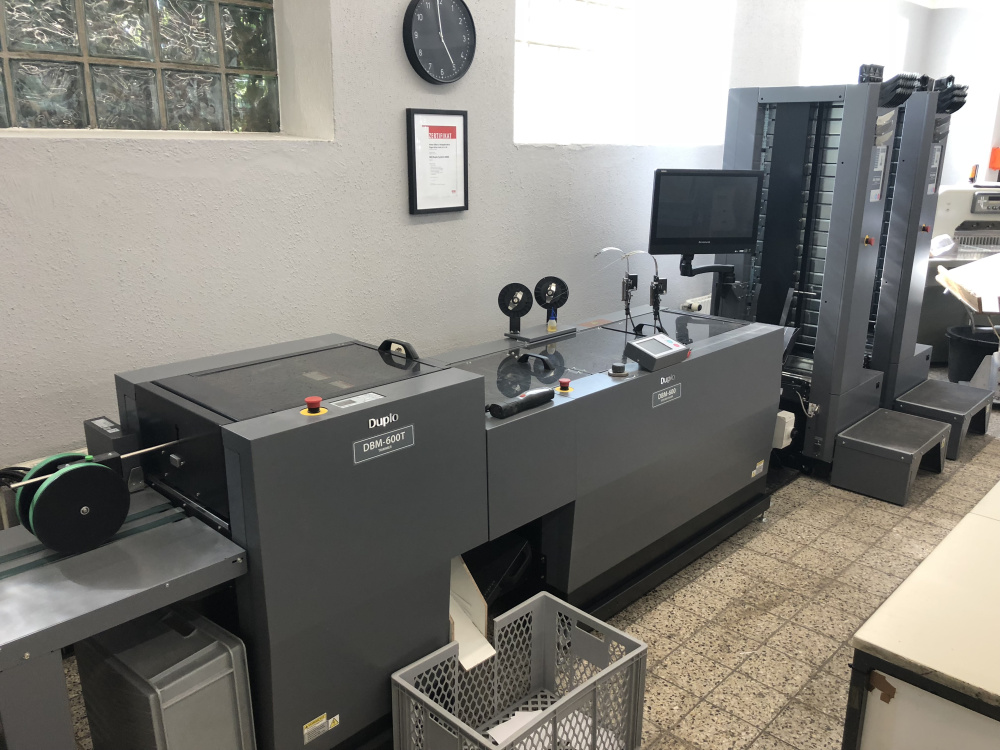

  • Collating line DUPLO DBM 600i

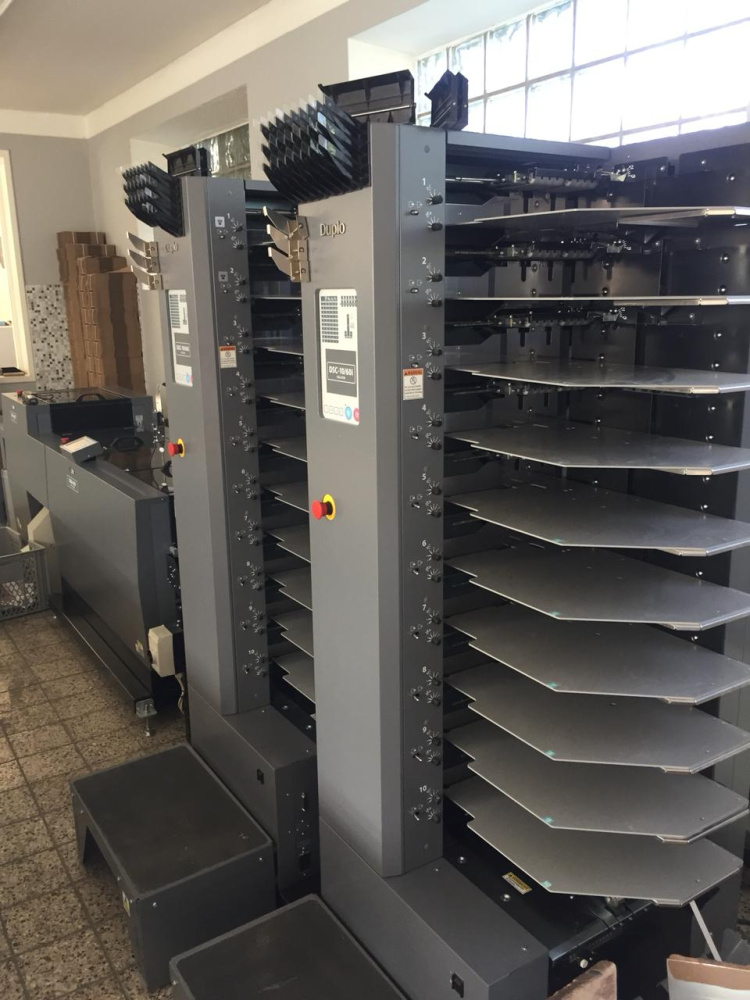

  • 2 collating towers DSC-10/60i (2 x 10 stations)
  • pile height 65 mm
  • max. size: 356 x 508 mm / 230 x 610 mm (landscape)
  • min. sige: 105 x 148 mm
  • paper weight: 50 – 300 gsm
  • PC controled job programming (MS Windows GUI)
  • Bookletmaker DBM - 600
  • max. size: 350 x 508 mm / 230 x 610 mm (landscape)
  • min. size: 120 x 170 mm / 105 x 297 mm (landscape)
  • max. booklet thickness: 6 mm (30 sheets 80 gsm)
  • speed: 4600 booklets size A5 – 10 sheets
  • Front side trimmer DBM – 600T


Detailed specification on inquiry!
