Bourg BST 10/BDF

Reference number: 1175
Manufacturer: Bourg
Model: BST 10/BDF
Year of production: 2008
Format / Working width: 520 x 350 mm
Colors / Number of units: 10
Available: immediately
Machine visible: in production
Price: on request

Technical specification

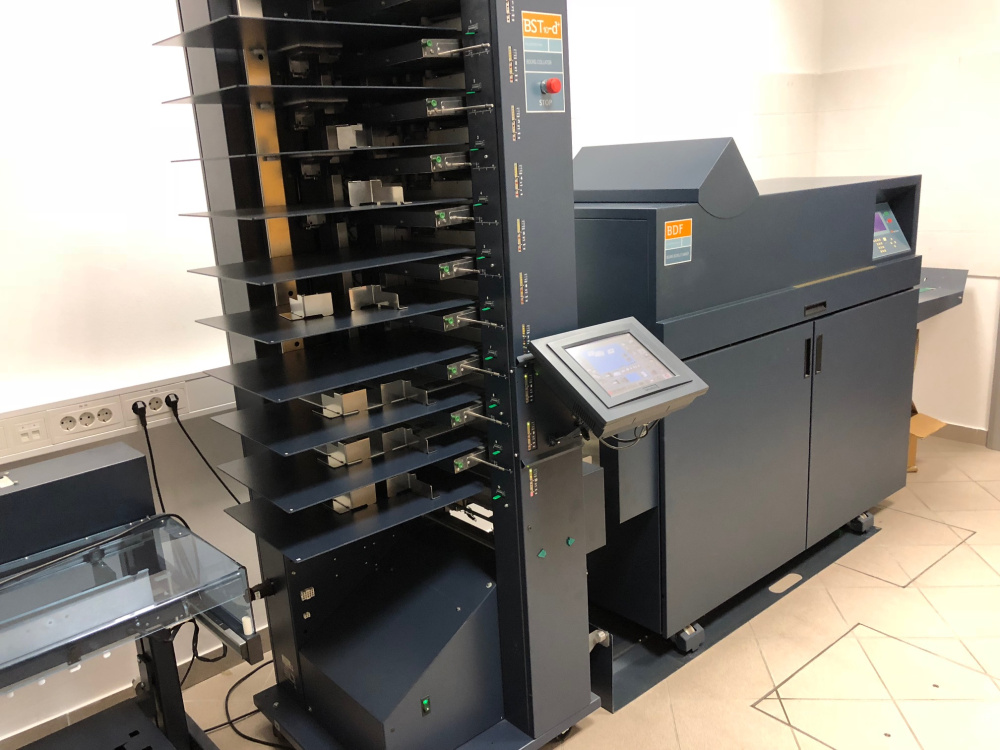

  • C.P. Bourg BST 10, tower with vacuum feeding

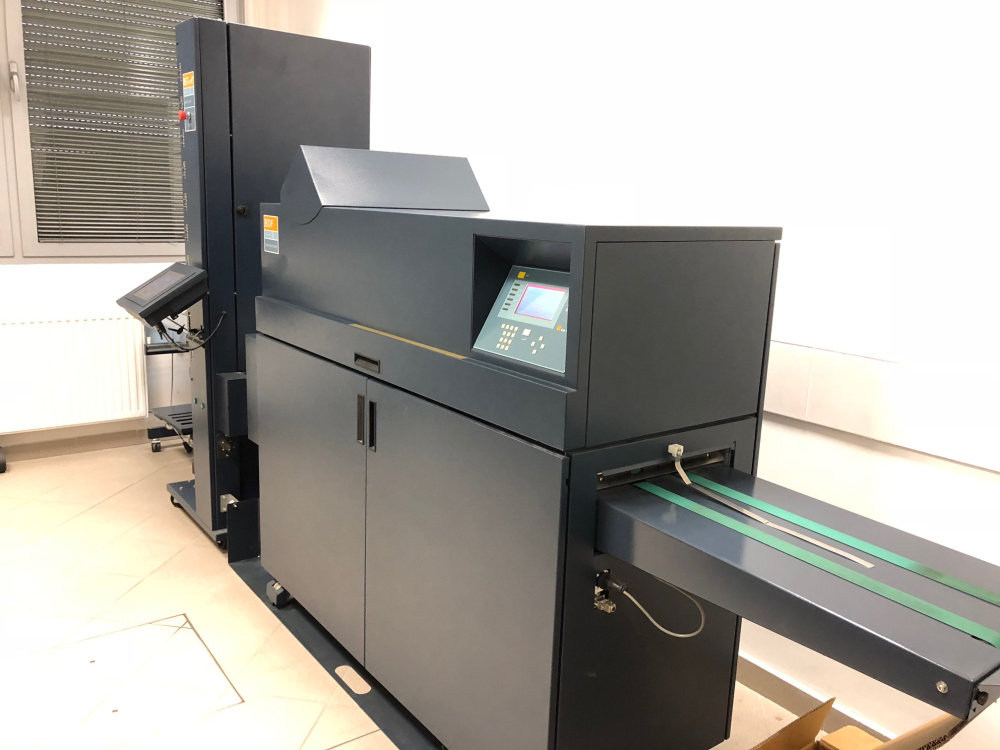

  • BDF finisher - fully automated booklet maker stich, fold and trim

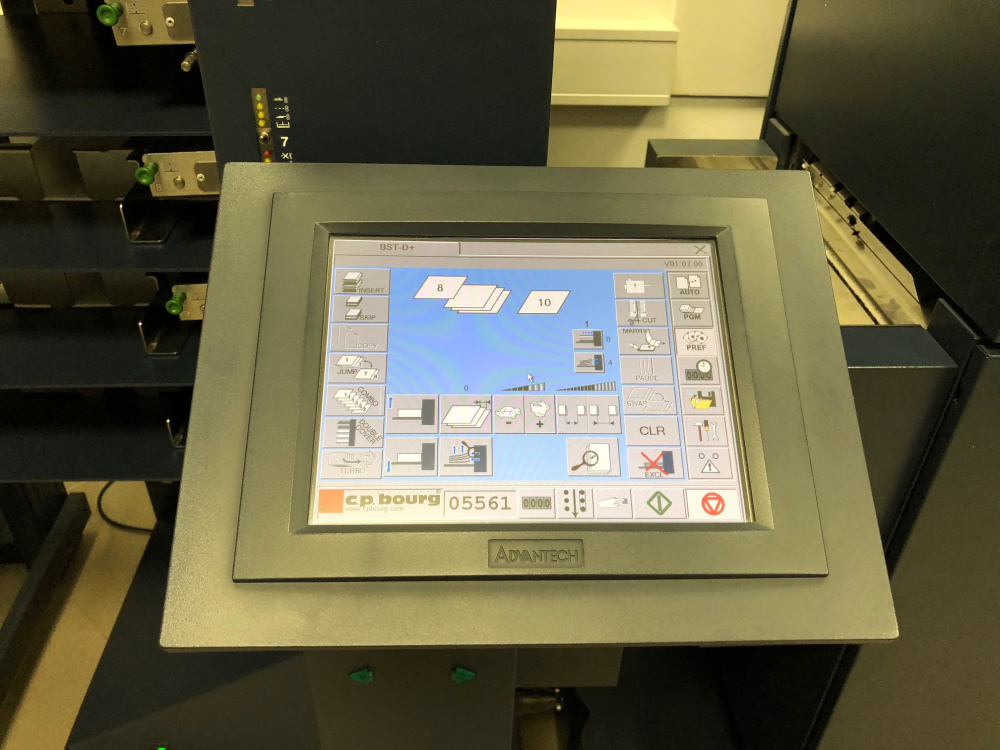

  • parameters via its touchscreen interface/hundreds of programs can be saved and recall

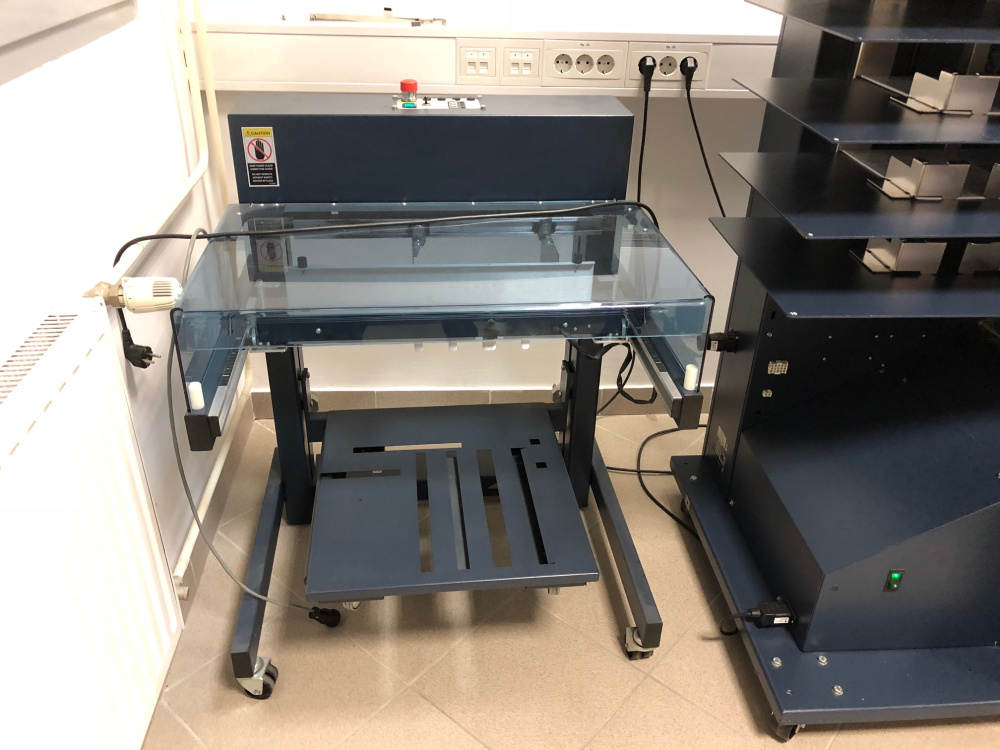

  • Bourg tower stacker TD-t
  • stream delivery

Technical Data:

  • paper weight: 50 gsm to 250 gsm
  • paper format: min 200 x 115 mm, max 520 x 350 mm
  • stitch-fold-trim up to: 22 sheets, 80 gsm
  • stitches up to: 55 sheets withaut folds
  • paper size: min 203 x 120 mm, max 520 x 350 mm
  • speed: up to 4200 sets/h
  • External dimensions: 4630 x 980 x 2000 mm
  • Weight: 1150 kg


Detailed specification on inquiry!
